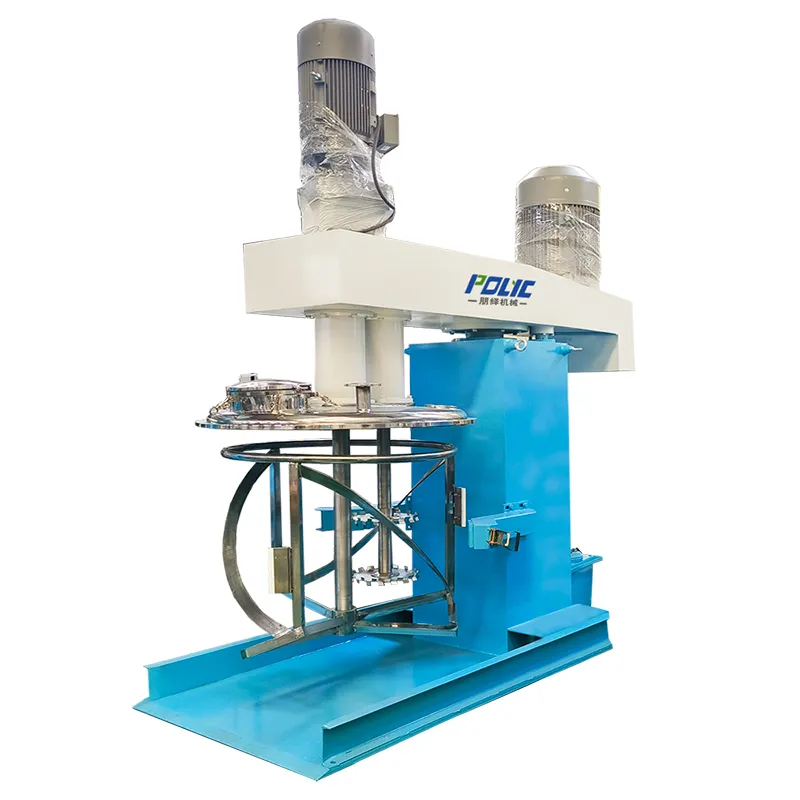

PMH

Helical Mixer

Helical mixers are widely used for dispersing, mixing, and blending medium- to high-viscosity materials in large batches, including plastic color paste, leather paste, putty, composite materials, new materials, and other formulations that require uniform mixing.

Tank Capacity150 – 900 L
High-Speed Motor Power7.5 – 55 kW
Low-Speed Motor Power4 – 37 kW
Lifting Stroke700 – 1100 mm
Request Information

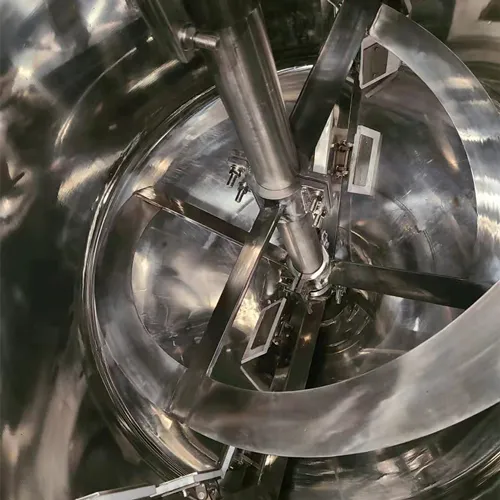

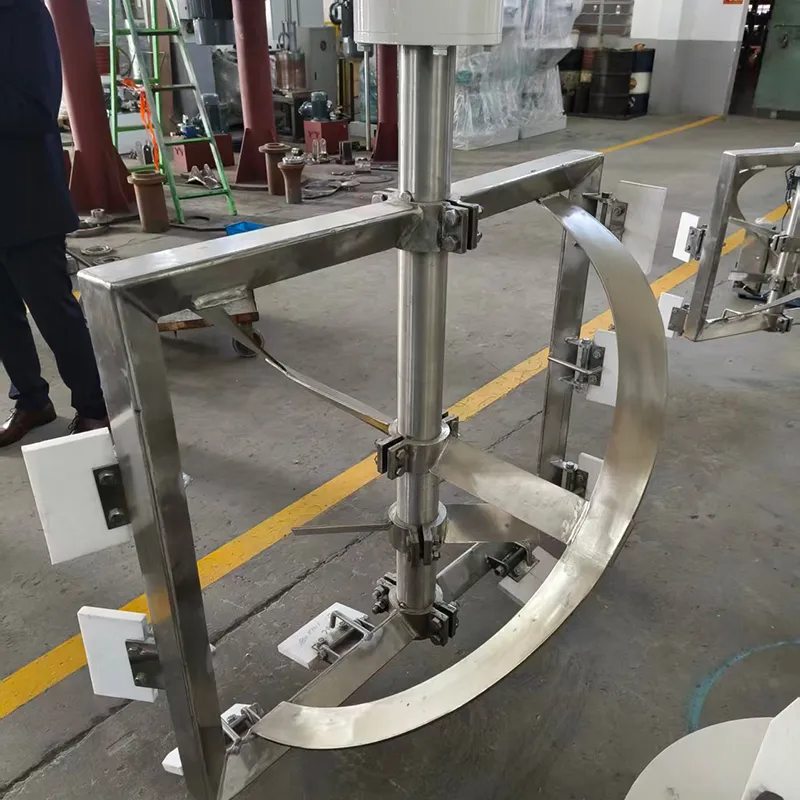

Helical mixers are suitable for high-viscosity, non-Newtonian, and shear-sensitive materials that need steady circulation with controlled shear. The mixer combines a high-speed dispersing shaft with a low-speed helical mixing shaft, allowing dispersion and bulk material movement to work in the same tank. During operation, the helical blade pulls material up from the bottom of the vessel and sends it back through the batch, creating an up-and-down rolling flow inside the tank. Thanks to the radial and axial motion during mixing thicker materials circulate more evenly, temperature distribution is more consistent, and overall product homogeneity during processing is improved.

Technical Specifications

Model PMH150 PMH500 PMH600 PMH900
Tank Capacity (L) 150 500 600 900
High-Speed Motor Power (kW) 7.5-11 18.5-22 22-37 30-55
Low-Speed Motor Power (kW) 4-5.5 7.5-15 11-30 11-37
High-Speed Dispersing Disc Diameter (mm) 200 250 280 330
Low-Speed Helical Blade Diameter (mm) 500 800 900 1100
High-Speed Shaft Speed (rpm) 0-1450 0-1450 0-1450 0-1450
Low-Speed Shaft Speed (rpm) 0-60 0-90 0-120 0-120
Lifting Stroke (mm) 700 950 1100 1100

Machine Details

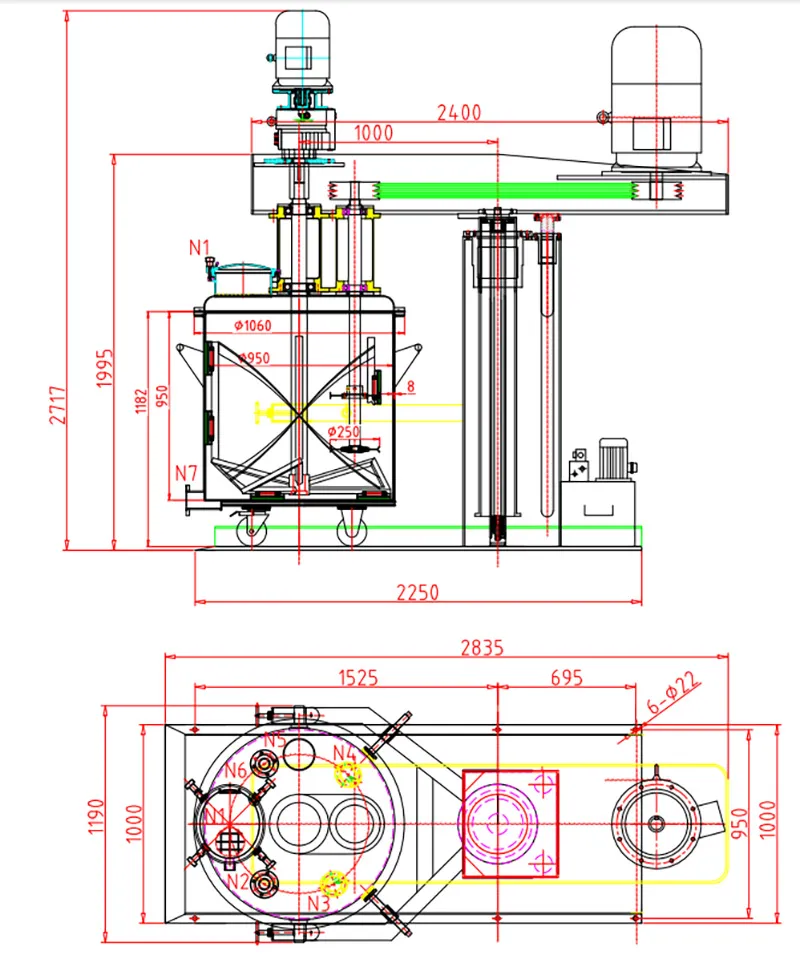

Technical Drawings

Technical Drawings
We can prepare technical drawings based on the required equipment configuration and project needs, with initial drawings available within 3 days. After order confirmation, we can also provide detailed assembly and disassembly diagrams, factory layout drawings, production line flowcharts, and other supporting documents for the corresponding equipment when needed.

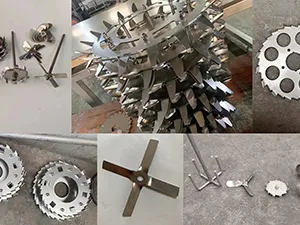

Dispersing Disc Configuration

Dispersing Disc Configuration
Wear-resistant stainless steel discs can be shaped with serrated edges to create the shear needed for dispersion. Their size and structure are selected according to the mixer power, material viscosity, and process requirements, so the discs can work properly with the helical mixing action.

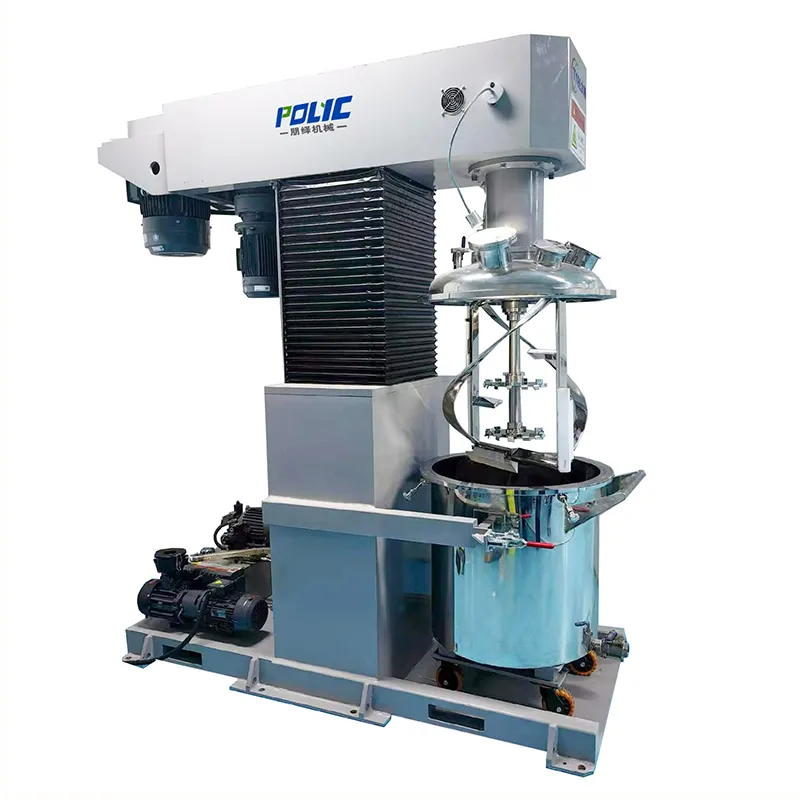

Customized Vacuum, Heating, and Cooling Systems

Customized Vacuum, Heating, and Cooling Systems
Vacuum, heating, and cooling systems can be customized according to the material, production process, and customer requirements. For products that require better hygiene control, corrosion resistance, or cleaner processing conditions, material contact parts can also be customized with food-grade SS316L stainless steel.

Features

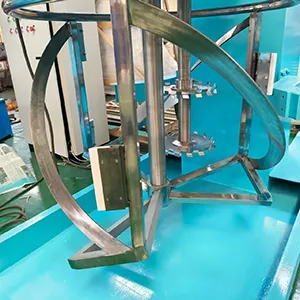

The helical blade continuously lifts and spreads the material from the bottom to the top of the tank, creating a three-dimensional circulation pattern that helps the batch mix faster and more evenly.
The vertical structure takes up less floor space, which makes the helical mixer easier to place in production areas where workshop space is limited.
Lower energy consumption helps reduce operating costs during mixing, especially when compared with less efficient traditional mixing methods for similar materials.

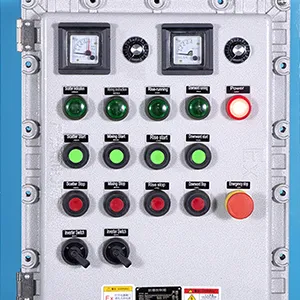

Electronic safety protection and overload protection devices help protect both the operator and the helical mixer during operation.
Some models have four universal wheels, so operators can move the helical mixer between workstations when the production layout or batch handling process changes.
