PHD Hydraulic Ram Discharge Press
Auxiliary Processing Equipment

Supporting equipment for material discharge, filtration, filling and process cooling in industrial mixing, dispersion and grinding systems.

PHD

Hydraulic Ram Discharge Press

Suitable for high-viscosity materials in chemical processing.

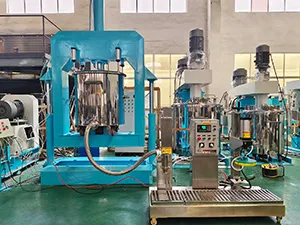

PHD Hydraulic Discharging Machine is also called extruder is a special helpful machine which match with double planetary driven mixer, double shaft mixer and multifunction mixer, can realize extrusion, manual filling and transmission of high viscosity material.

Motor Power4 – 11 kW
Tank Diameter900 – 1200 mm
Plate Diameter900 – 1100 mm
Max. Lift1150 – 1250 mm
Request InformationTechnical Drawing

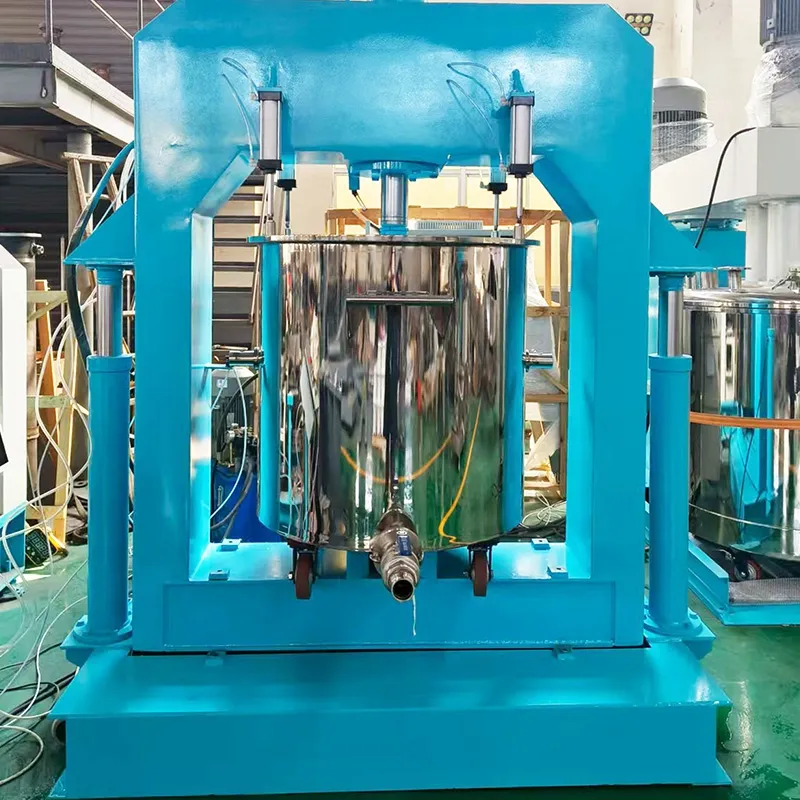

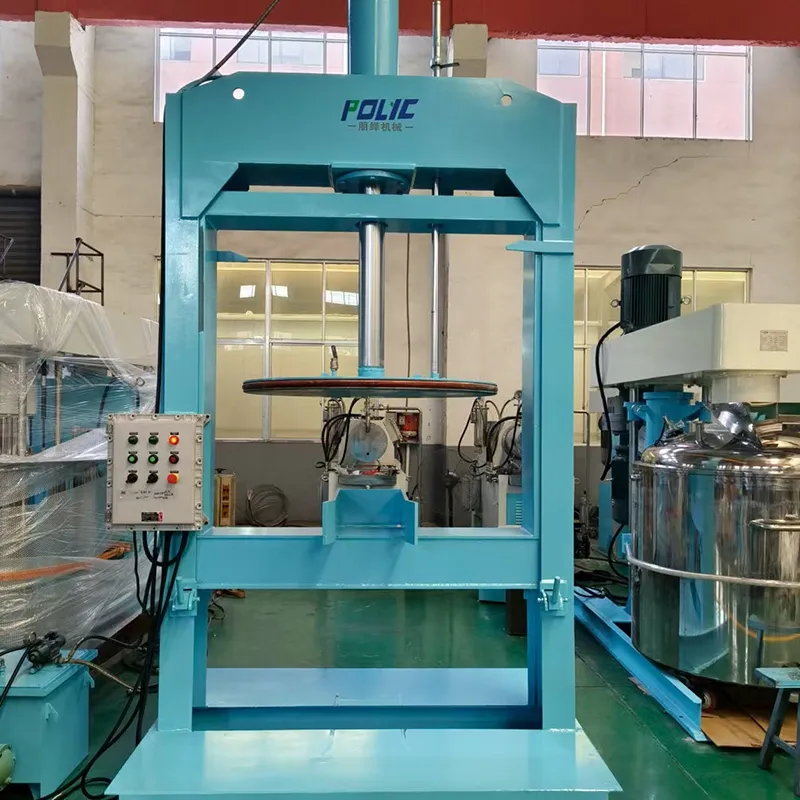

High-viscosity materials are often difficult to discharge after mixing. The PHD discharge press is designed for the post-mixing discharge and transfer stage, where material needs to be extruded from containers for filling, packaging, or further processing. The system uses a hydraulic mechanism to drive a pressure plate downward inside the container, generating consistent pressure to push material out through the outlet. It can be used together with double shaft mixers, planetary mixers, and other mixing systems to complete the discharge process. Optional vacuum sealing allows bubble removal during extrusion, supporting cleaner and more stable filling. This makes it suitable for materials such as adhesives, silicone sealants, inks, and battery slurries.

Technical Specifications

Model Motor Power (kW) Tank Diameter (mm) Plate Diameter (mm) Max. Lift (mm)
PHD900 4 900 900 1150
PDH1000 4 1000 1000 1150
PDH1100 5.5 1100 1100 1250
PFDH1200 11 1200 1100 1250

Machine Details

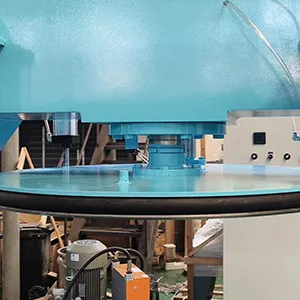

  • Grinding chamberGrinding chamber

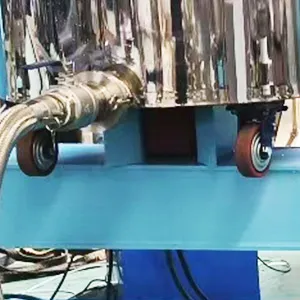

  • Material tankMaterial tank

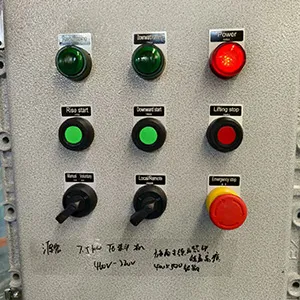

  • Explosion-proof control panelExplosion-proof control panel

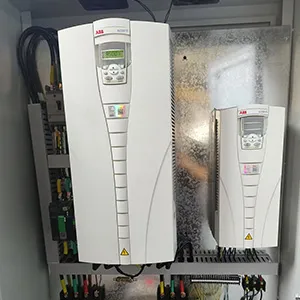

  • InverterInverter

Features

High-viscosity processing capability

Handles paste-like materials with viscosity up to 5,000,000 cP, suitable for non-Newtonian fluids across a wide range of conditions.

Adjustable hydraulic pressure

Hydraulic pressure can be controlled within 0–25 MPa, allowing stable and continuous extrusion with adjustable force.

Clean discharge with minimal residue

The pressure plate is equipped with a sealing ring that closely follows the container wall, reducing material residue and preventing backflow.

Optional vacuum operation

Vacuum sealing can be integrated to remove air during extrusion, supporting bubble-free filling for sensitive materials.

Wide capacity range

Available for container sizes from 30L to 3000L, covering laboratory use to large-scale production requirements.
