PTM

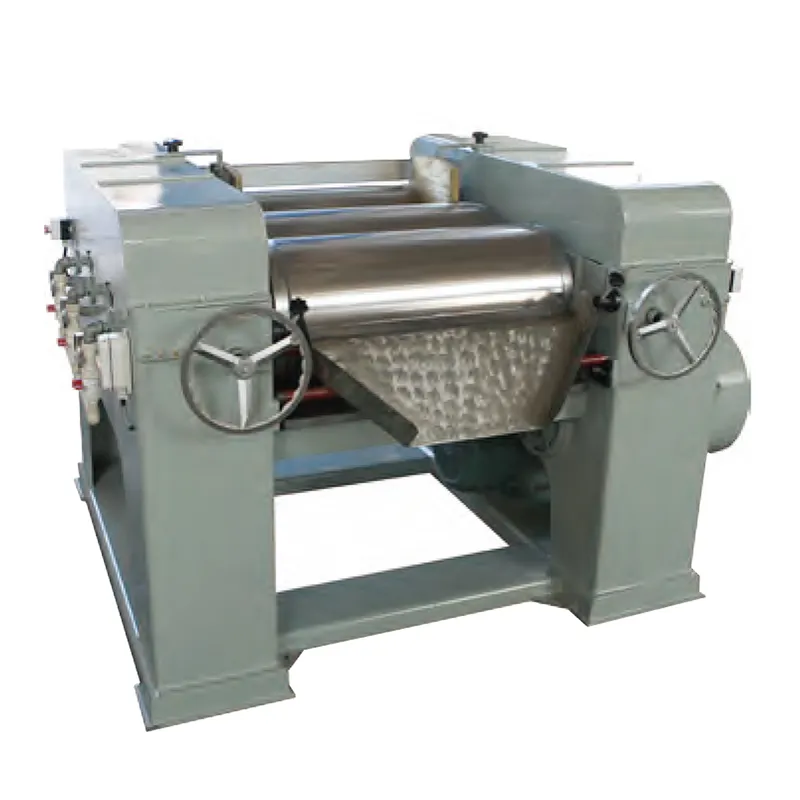

Triple Roller Mill

Suitable for wet grinding and fine dispersion of liquid, slurry, and paste-like formulations, especially high-viscosity or high-solid materials that need controlled fineness, smooth texture, and uniform dispersion rather than dry powder grinding.

Roller Diameter150 – 406 mm
Roller Working Length300 – 1000 mm
Motor Power2.2 – 22 kW
Weight500 – 5800 Kg
Request InformationDownload Brochure

Triple roller mills work through a simple but precise grinding principle in which the material is fed between three horizontal rollers, and each roller turns at a different speed. The narrow roller gaps press and work the material repeatedly, refining particles, reducing agglomerates, and creating a smoother, more uniform paste. Since no grinding media is used, the process is especially useful for high-viscosity or high-solid formulations that need controlled fineness, good dispersion, and a glossy final appearance.

Technical Specifications

Model Roller Diameter Roller Working Length Roller Speed (rpm) Motor Power Dimensions Weight
mm mm Slow Middle Fast kW mm Kg
PTM150 150 300 26 78 205 2.2 980x750x915 500
PTM260 260 675 24 68.5 195 7.5 1750x1400x1180 2000
PTM406 406 810 16 48 145 15 2100x1900x1360 5300
PZM406L 406 1000 16 48 145 22 2350x1778x1320 5800

Machine Details

PTM Triple Roller Mill

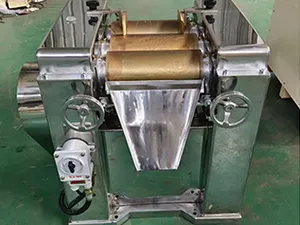

Roller materials can be selected according to the product and grinding requirements, with options such as alloy rollers or ceramic rollers.

PTM Triple Roller Mill

Triple roller mills use mechanical grinding without grinding media, so there is no media wear or bead contamination during processing.

PTM Triple Roller Mill

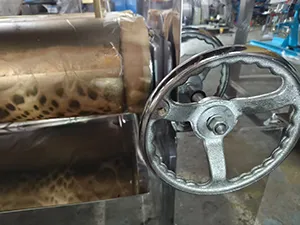

Roller pressure and gap can be adjusted to control grinding strength, final fineness, and dispersion quality according to the material.

PTM Triple Roller Mill

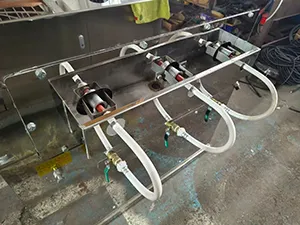

Hollow water-cooled rollers help remove heat generated during grinding, keeping temperature rise under control during production.

PTM Triple Roller Mill

The three-roll structure is a mature and easy-to-understand grinding method, making operation, cleaning, and process adjustment more straightforward for operators.

PTM Triple Roller Mill

Triple roller mills are suitable for small batches and multi-variety production, especially when frequent color changes or high-value materials require easier cleaning and better material control.

Features

The narrow gaps between the rollers create strong shear and pressure, allowing fine particle agglomerates to be broken down more effectively during grinding.
Triple roller mills can help achieve fine particle size and a narrow particle size distribution, depending on the material, roller gap, and process settings.
The repeated rolling and grinding action helps improve the smoothness and surface gloss of the finished paste, especially in formulations where texture and appearance are important.
High-viscosity slurries and pastes can be processed without adding extra dilution, making the roller mill suitable for materials that need to keep their original consistency.
The grinding rollers are built with wear-resistant materials and a sturdy structure, helping extend service life and keep operation stable during long-term use.
