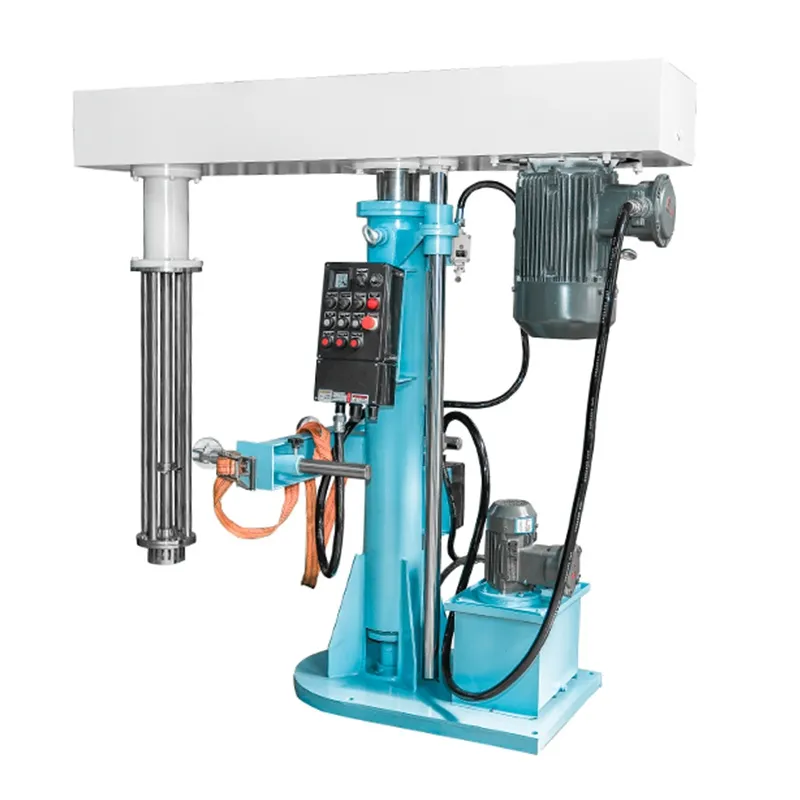

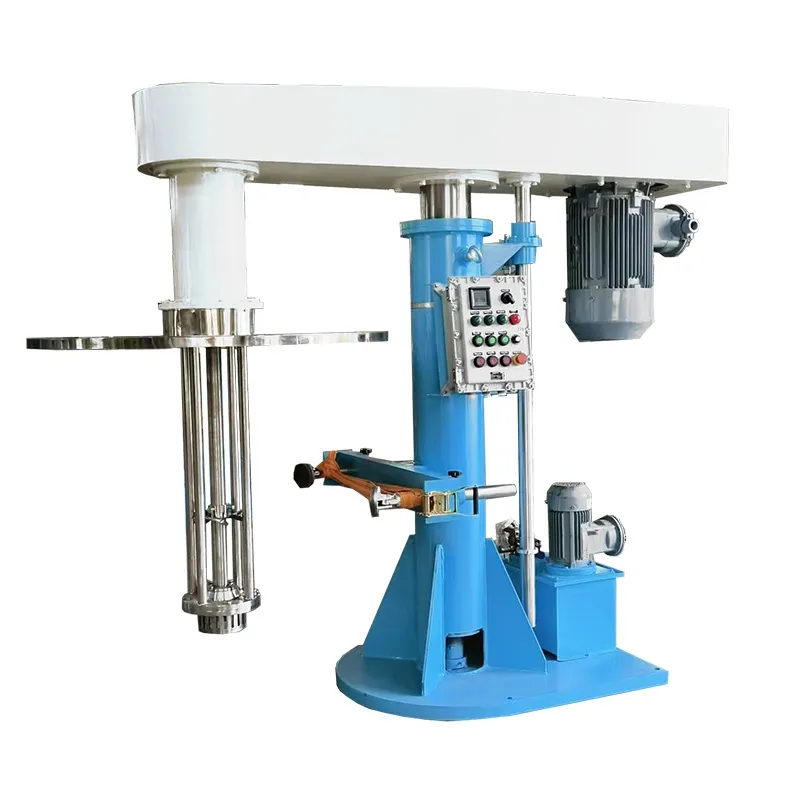

PYR High Shear Emulsifier
Industrial Emulsifiers

High-Shear Mixing, Emulsification and Homogenization Equipment

PYR

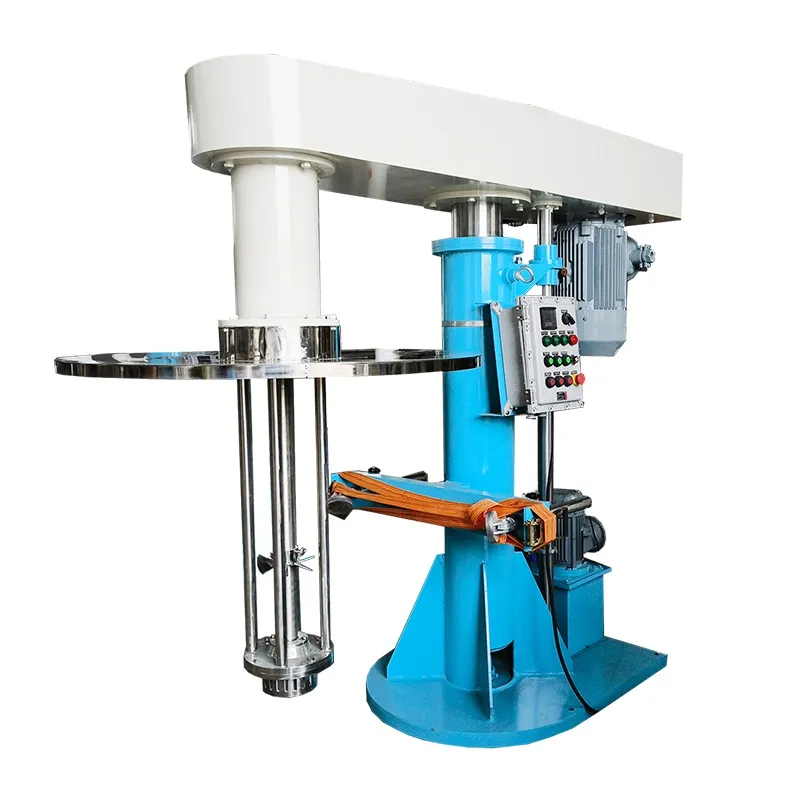

High Shear Emulsifier

High shear emulsifiers are suitable for creams, lotions, emulsions, suspensions, food sauces, pharmaceutical liquids, petrochemical materials, lithium battery slurries, and other liquid-liquid or liquid-solid formulations that require mixing, homogenization, and emulsification.

Emulsifying Motor Power11 – 55 kW
Capacity600 – 3000 L
Rotor Speed0 – 2900 rpm
Request InformationDownload Brochure

High shear emulsifiers use a high-speed rotor and a fixed stator to process materials through strong shear, impact, and turbulence. As the material passes through the narrow gap between the rotor and stator, droplets, particles, or soft agglomerates are broken down and distributed more evenly through the liquid phase. The same high-shear action can combine immiscible phases such as oil and water, creating smoother emulsions, suspensions, or liquid-solid mixtures with better uniformity. The hydraulic lifting design allows operators to raise or lower the working head during operation, cleaning, or material changeover, so the emulsifier is easier to handle in controlled mixing, homogenization, and emulsification processes.

Technical Specifications

Model PYR11 PYR22 PYR37 PYR55
Emulsifying Motor Power (kW) 11 22 37 55
Capacity (L) 600 1000 2000 3000
Rotor Speed (rpm) 0-2900 0-1500 0-1500 0-980

Machine Details

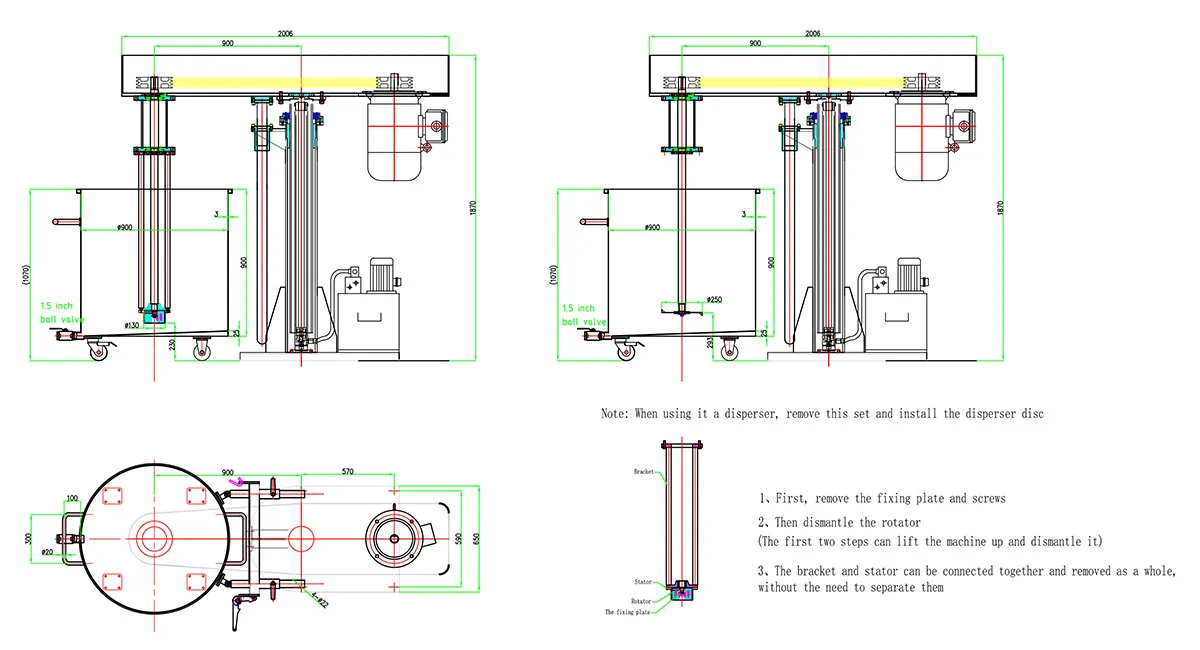

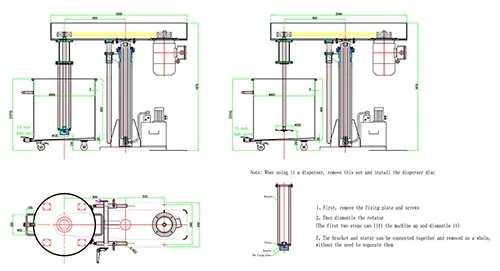

Technical Drawings
We can design technical drawings with specified configurations according to customer needs, and can produce drawings within 3 days. After the customer places an order, we can also create detailed disassembly and assembly diagrams, factory layout diagrams, production line flowcharts, etc. for the corresponding machines if they need them.

Customized Rotor-Stator Structures
Different rotor-stator working heads can be customized according to the material viscosity, flow behavior, and process requirements. The selected structure affects shear strength, material circulation, emulsification, and dispersion performance, so the working head should match the formulation and target result.

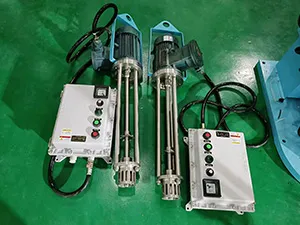

Compact Structure and Easier Operation

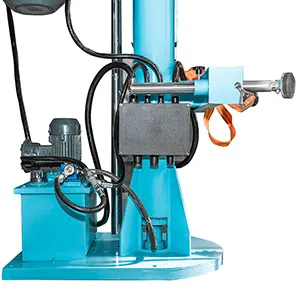

The high shear emulsifier has a compact floor-standing structure with hydraulic lifting, which allows the working head to move up and down for processing, cleaning, and material changeover. It can be used with different batch tanks, giving production teams more flexibility in mixing, homogenization, and emulsification processes.

Features

High-speed rotor-stator shear helps reduce droplet or particle size, improve homogenization, and create smoother emulsions, suspensions, or liquid-solid mixtures with better uniformity.
Fast material circulation through the rotor-stator head supports quicker mixing, emulsification, and homogenization compared with simple low-speed stirring, especially when the formulation needs finer dispersion.
Stainless steel contact parts and a removable working head make cleaning and routine maintenance easier, while sanitary-grade materials or CIP/SIP-compatible designs can be customized for processes with higher hygiene requirements.
Strong shear action helps break down soft agglomerates in powders, pigments, fillers, or conductive additives, allowing solid particles to disperse more evenly through the liquid phase.
One unit can support several wet processing steps, including mixing, dispersion, homogenization, emulsification, and deagglomeration, reducing the need for separate equipment in suitable processes.

Why Polyc

Polyc provides emulsifying and homogenizing equipment for liquid-liquid emulsification, solid-liquid dispersion and high-shear mixing in chemical processing applications.

Our emulsifiers are available in different configurations to meet specific requirements for material viscosity, batch size, processing capacity and emulsification performance. With over 30 years of industry experience, our technical team supports equipment selection, process configuration and integration into complete production lines.
