PEK Emulsifying Kettle
Industrial Emulsifiers

High-Shear Mixing, Emulsification and Homogenization Equipment

PEK

Emulsifying Kettle

Have dispersion, emulsion, homogenization, dissolution function.

Emulsifying kettles are suitable for wet processing of high-viscosity liquids, liquid-powder mixtures, slurries, pastes, creams, emulsions, ointments, sauces, and other formulations that require mixing, dispersion, homogenization, emulsification, defoaming, and temperature control.

Kettle Volume1000 – 5000 L
Vessel Diameter1100 – 1900 mm
Mixing Motor Power4 – 15 kW
Mixing Speed50 – 60 Rpm
Request InformationDownload Brochure

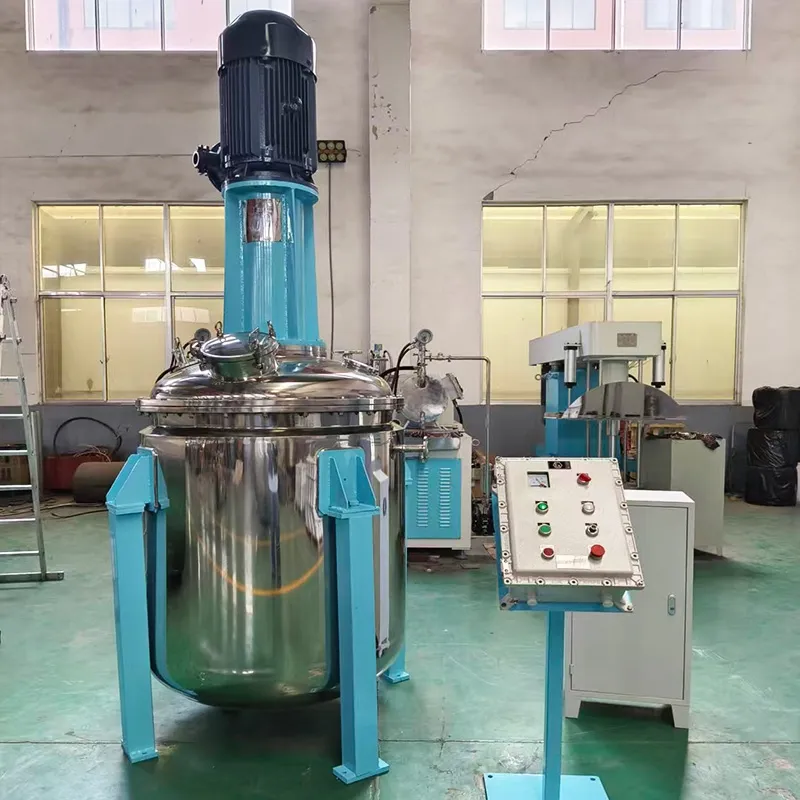

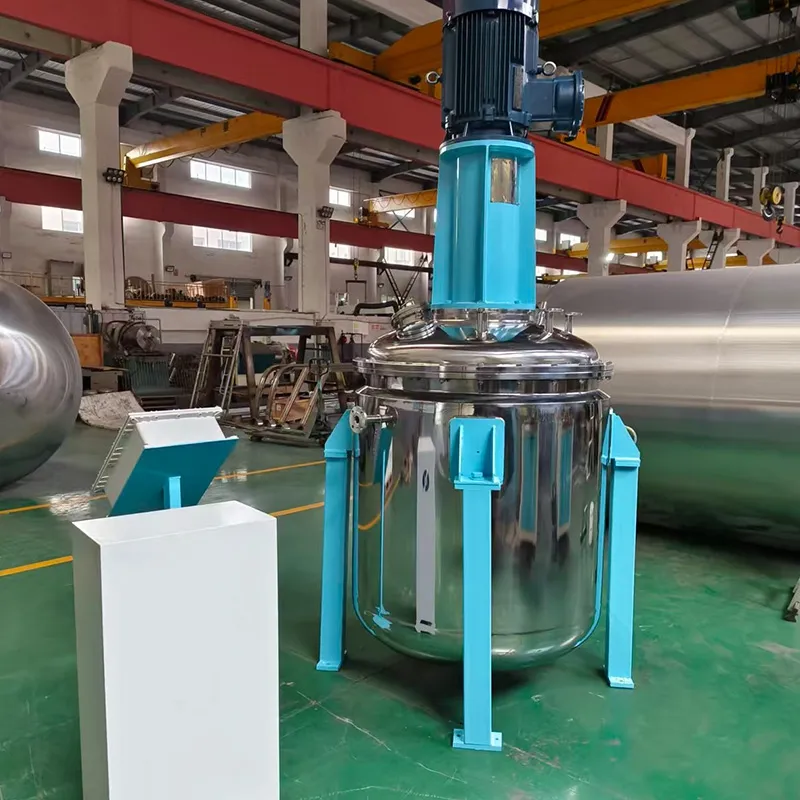

Emulsifying kettles combine a closed mixing vessel with a high-shear rotor-stator head, stirring system, vacuum function, and temperature control. Materials can be mixed, dispersed, homogenized, emulsified, defoamed, heated, or cooled inside the same vessel, reducing the need to transfer material between separate steps. Inside the vessel, the stirring system keeps the batch moving so the material can pass repeatedly through the high-shear rotor-stator head, where droplets, soft agglomerates, or solid particles are broken down for a more uniform mixture. When the formulation is sensitive to trapped air or foam, vacuum operation helps create a denser and smoother batch, while the jacketed vessel can heat or cool the material when temperature control is required.

Technical Specifications

Kettle Volume (L) Vessel Diameter Vessel Height Emulsifying Motor Power Emulsifying Speed Mixing Motor Power Mixing Speed
mm mm kW Rpm kW Rpm
1000 1100 1550 11 0-3000 4 60
2000 1300 1900 18.5 0-1450 4 50
3000 1500 2300 30 0-1450 7.5 50
5000 1900 2300 22*2pcs 0-1450 15 50

Machine Details

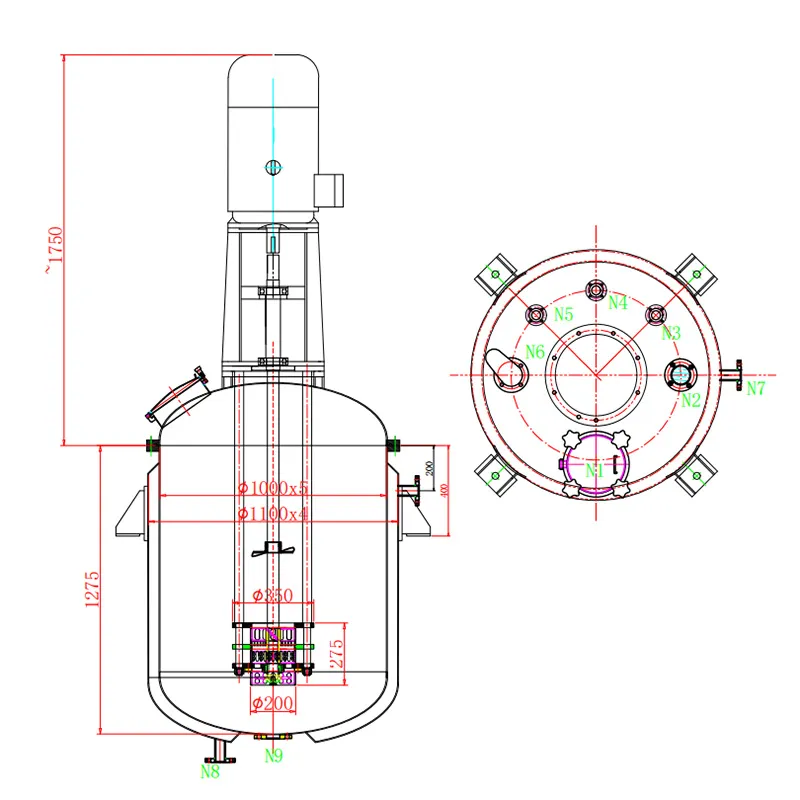

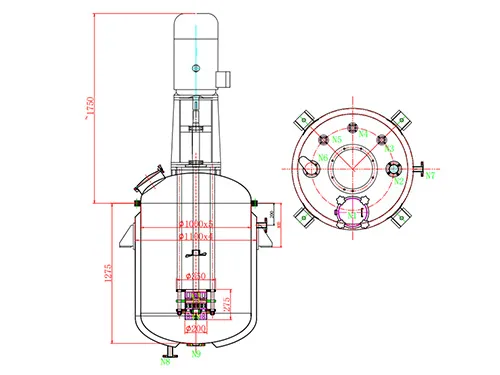

Technical Drawings
We can design technical drawings with specified configurations according to customer needs, and can produce drawings within 3 days. After the customer places an order, we can also create detailed disassembly and assembly diagrams, factory layout diagrams, production line flowcharts, etc. for the corresponding machines if they need them.

Different Rotor-Stator Structures

Different Rotor-Stator Structures
Rotor-stator tooth shape, opening size, and stage design can be customized according to material viscosity and process requirements, supporting emulsification and dispersion for low- to medium-high-viscosity formulations.

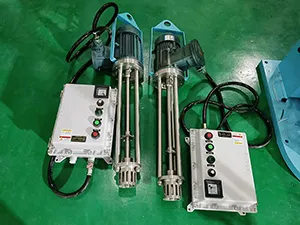

Compact Integrated Structure

Compact Integrated Structure
The emulsifying kettle combines the high-shear head, mixing vessel, vacuum function, and temperature control in one unit, allowing mixing, emulsification, defoaming, heating, and cooling to be handled in the same vessel.

Features

Direct installation on the kettle or mixing tank allows emulsification, homogenization, and dispersion to take place inside the same vessel, so the material does not need to be transferred to separate processing equipment.
The high-shear rotor-stator head can reduce droplet size and improve emulsion stability, depending on the material, process settings, and formulation requirements.
Strong shear helps break down soft powder agglomerates, such as pigments, fillers, or conductive additives, so solid particles can disperse more evenly through the liquid phase.
In-vessel high shear processing can shorten mixing and emulsification time compared with simple low-speed stirring, especially when the product requires finer dispersion or better homogenization.
The rotor-stator circulation helps materials move more evenly inside the kettle, reducing layering and supporting better batch consistency.

Why Polyc

Polyc provides emulsifying and homogenizing equipment for liquid-liquid emulsification, solid-liquid dispersion and high-shear mixing in chemical processing applications.

Our emulsifiers are available in different configurations to meet specific requirements for material viscosity, batch size, processing capacity and emulsification performance. With over 30 years of industry experience, our technical team supports equipment selection, process configuration and integration into complete production lines.
