PDK

High Speed Dispersing Kettle

Suitable for wet processing of low to medium viscosity materials, including liquid–liquid and solid–liquid systems.

The Dispersing Kettle is applicable for pre-mixing raw material before grinding for paint, dyes, pigments, printing inks, pesticide and paper-making industries, etc. It can be designed with single shaft high speed disperser, double shafts mixer or triple shafts mixer according to material viscosity, solid content and customers' requirement thus can dispersing and mixing more thoroughly and evenly.

Capacity1 – 10 m³
Dispersing Power15/22 – 90/110 kW
Dispersing Speed0 – 1450 rpm
Request InformationTechnical Drawing

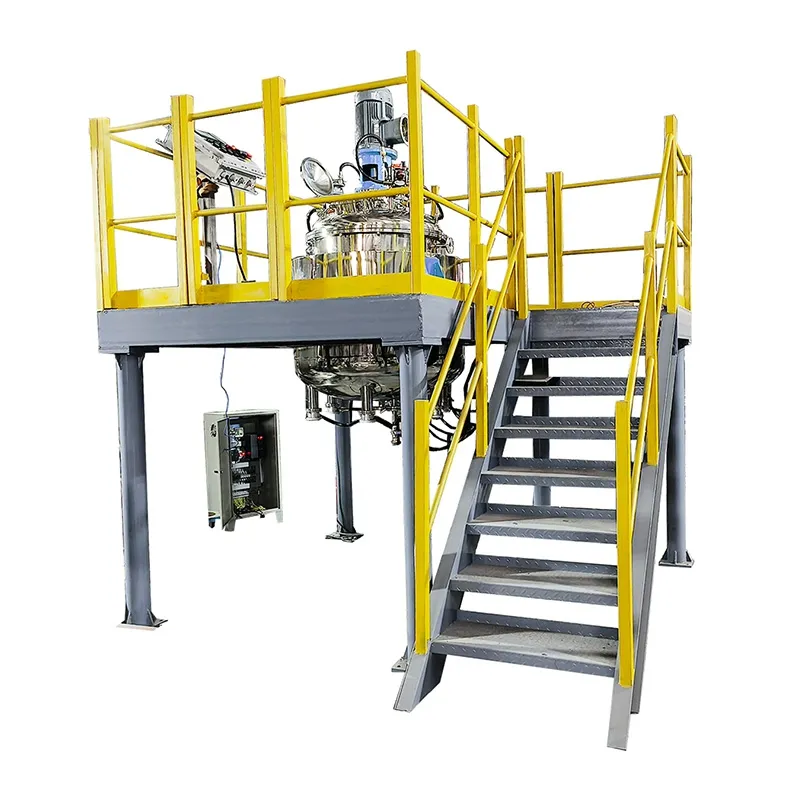

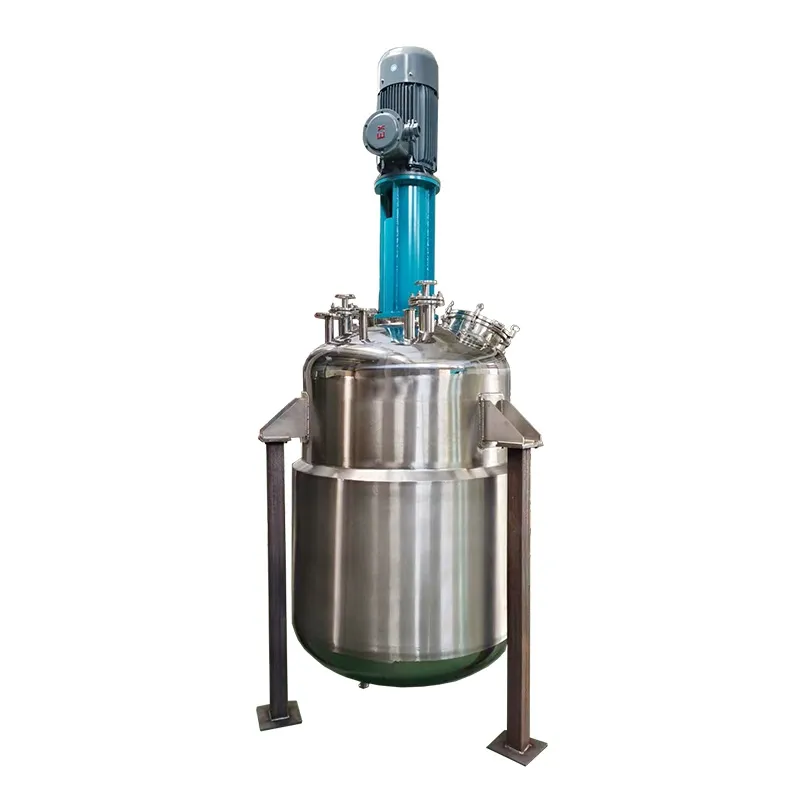

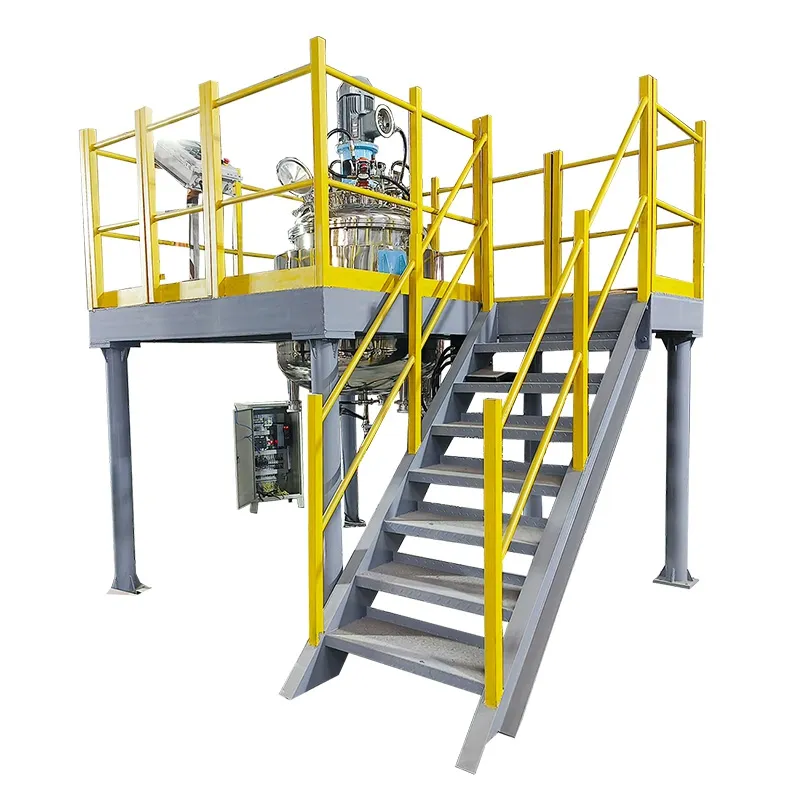

The high-speed dispersing kettle is designed to handle mixing and dispersion in one system. It is suitable for processes where powders need to be quickly incorporated into liquid phases. The PDK dispersing kettle combines strong shear dispersion with stable bulk mixing, helping improve efficiency during pre-mixing and large-batch production. Equipped with high-speed dispersing shafts and low-speed wall-scraping agitators, the system creates intensive turbulence and shear force to accelerate wetting and dispersion. This design allows materials to be processed more evenly while reducing mixing time, making it well suited for coatings, inks, adhesives, battery slurries, and other chemical applications.

Technical Specifications

Model Capacity (m³) Dispersing power (kW) Dispersing Speed (rpm)
PDK-1 1 15/22 0-1450
PDK-2 2 30/45 0-1450
PDK-3 3 45/55 0-1450
PDK-5 5 55/75 0-1450
PDK-8 8 75/90 0-1450
PDK-10 10 90/110 0-1450

Machine Details

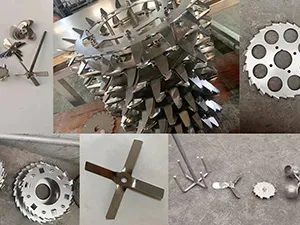

Optimized dispersing disc structure

Optimized dispersing disc structure
By finely cutting wear-resistant stainless steel material into a serrated shape, the angle of the serrated shape is finely measured to create the strongest shear force and dispersion effect impeller, with high strength, durability, and sturdiness. Flexible production based on the power of the disperser, simple and practical. Easy to replace, easier to clean, and pollution-free.

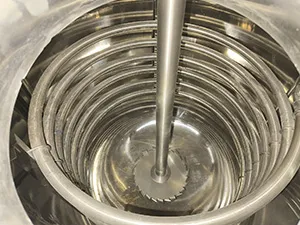

Customized temperature control system

Customized temperature control system
Heating and cooling solutions can be tailored based on process needs, including external coil heating, electric heating, or jacketed cooling systems to maintain stable operating conditions.

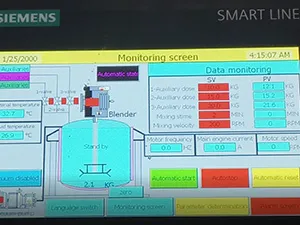

Accurate automation control

Accurate automation control

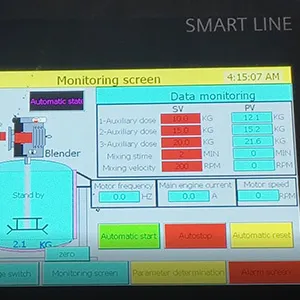

Equipped with a PLC control system to achieve precise setting and real-time monitoring of parameters such as dispersed speed, temperature, vacuum degree, and time.

Features

Efficient dispersion performance

The high-speed dispersing disc generates strong shear force and turbulence, allowing powder agglomerates to break down quickly and disperse evenly in a shorter time.

Dual-axis mixing design

A combination of high-speed dispersion and low-speed wall scraping ensures both fine particle dispersion and complete bulk mixing, reducing dead zones inside the kettle.

Improved processing efficiency

Compared to conventional mixing tanks, the system reaches the required dispersion level faster, helping shorten production cycles and improve batch consistency.

Multi-functional integration

The kettle can be configured with additional functions such as vacuum defoaming, heating or cooling, pH adjustment, and controlled feeding, allowing multiple process steps to be handled in a single unit.

Wide viscosity adaptability

By adjusting speed and agitator configuration, the system can process materials ranging from low to medium-high viscosity with stable performance.

Why Polyc

Polyc designs and manufactures mixing kettles, mixing tanks and reactors for chemical production. These systems can be customized according to material properties, working volume, motor power, explosion-proof requirements and local electrical standards.

With more than 30 years of industry experience within our core technical team, we can also integrate mixing and reaction equipment with upstream material handling and downstream filtration, filling and packaging processes.
