PSK Multi-function Dispersing Kettle
Dispersing, Milling and Mixing

Machines for the Paint, Coating and Chemical Industry

PSK

Multi-function Dispersing Kettle

Suitable for wet processing of liquid–liquid and solid–liquid systems.

Processes that involve multiple stages such as dispersion, mixing, and temperature control often require several pieces of equipment working together. The PSK multi-function dispersing kettle brings these steps into a single system, allowing materials to be processed more efficiently within one vessel.

Capacity1 – 15 m³
Stirring Power4 – 22 kW
Stirring Speed41 – 50 rpm
Dispersing Power11/15 – 45/75 kW
Request InformationTechnical Drawing

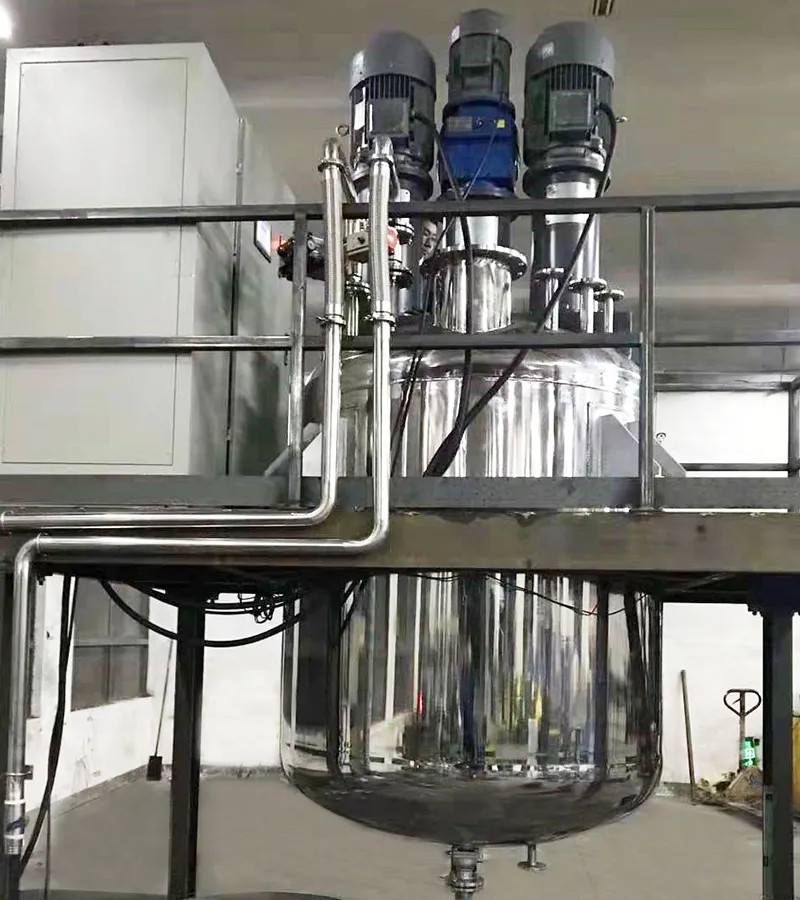

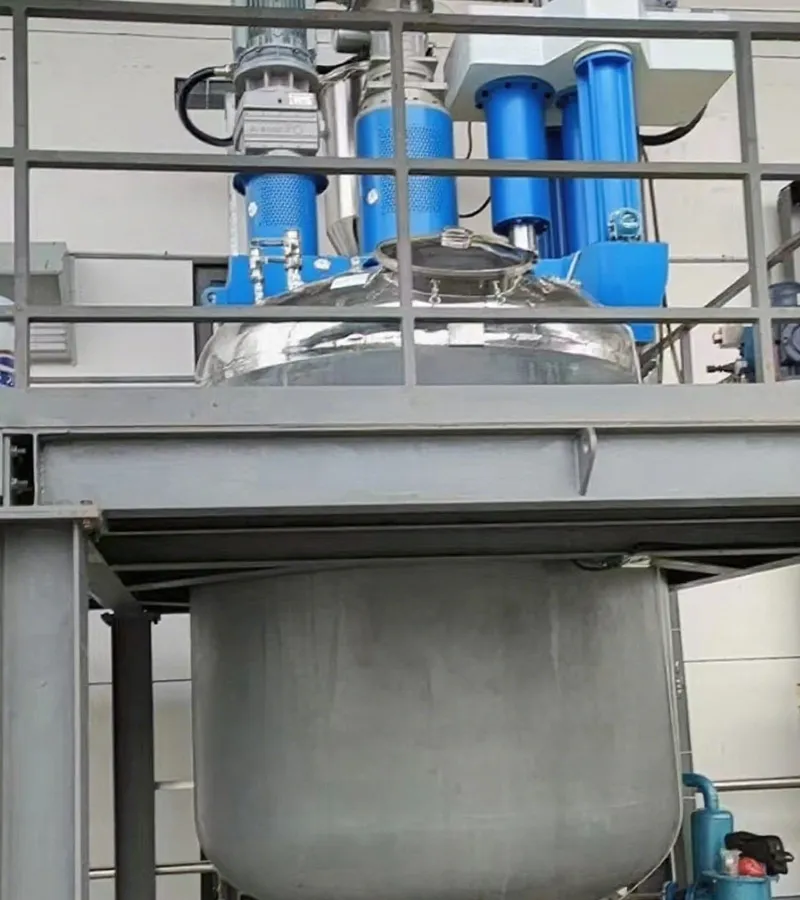

The system typically uses a dual-shaft or multi-shaft structure, where a high-speed dispersing unit works together with a low-speed scraping agitator. Additional configurations such as high shear emulsifiers, vacuum systems, and heating or cooling jackets can be integrated as needed. This setup supports processes including powder wetting, dispersion, mixing, defoaming, and temperature control, making it suitable for medium to high viscosity and multi-phase materials across industries such as new energy, adhesives, coatings, cosmetics, and fine chemicals.

Technical Specifications

Model Capacity (m³) Stirring Power (kW) Stirring Speed (rpm) Dispersing power (kW) Dispersing Speed (rpm)
PSK-1 1 4 50 11/15 0-1450
PSK-2 2 5.5 50 15/22 0-1450
PSK-3 3 5.5 50 18.5/30 0-1450
PSK-5 5 7.5 50 22/37 0-1450
PSK-8 8 11 41 30/45 0-1450
PSK-10 10 15 41 37/55 0-1450
PSK-15 15 22 41 45/75 0-1450

Machine Details

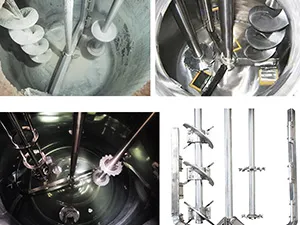

Flexible shaft configurations

Flexible shaft configurations
Type of shafts can be configured based on the process, allowing the equipment to match different material behaviors and production requirements.

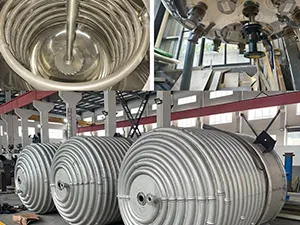

Customizable temperature control system

Customizable temperature control system
Heating and cooling options can be tailored, including external coils, electric heating, or jacketed cooling systems, depending on process needs.

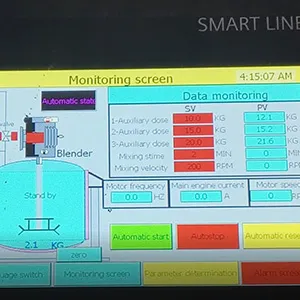

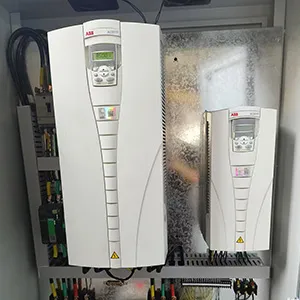

Accurate automation control

Accurate automation control
The PLC control system supports stable parameter control and monitoring, helping maintain consistent processing conditions, such as dispersed speed, temperature, vacuum degree, and time, across different batches.

Features

Integrated multi-process operation

Combines low-speed mixing, high-speed dispersion, and optional emulsification or homogenization in one system, reducing the need for multiple machines and simplifying the production flow.

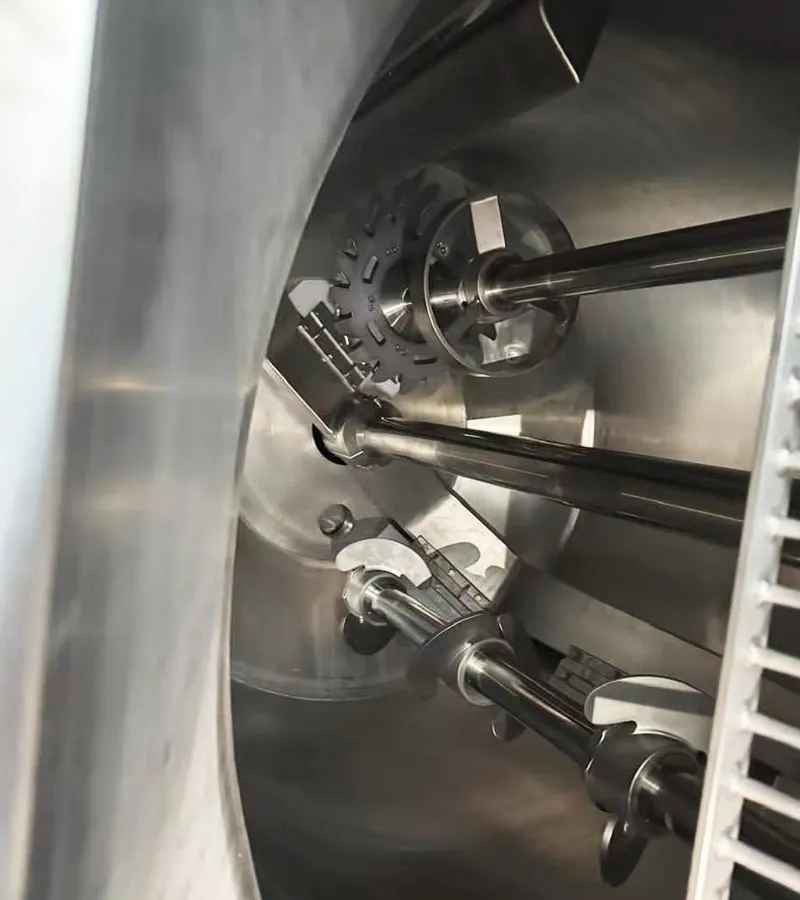

Composite mixing structure

The dual-shaft or multi-shaft configuration creates effective material circulation and interaction between different mixing elements, helping achieve uniform results throughout the vessel.

Adapted for medium to high viscosity materials

Designed to handle thixotropic and higher viscosity materials, maintaining stable processing across a wide working range.

Vacuum-capable enclosed design

The sealed structure allows vacuum operation, which helps remove air bubbles while reducing oxidation and solvent loss during processing.

Process control with PLC system

Equipped with a PLC control system for setting and monitoring key parameters such as speed, temperature, vacuum level, and processing time.

Why Polyc

Polyc designs and manufactures mixing kettles, mixing tanks and reactors for chemical production. These systems can be customized according to material properties, working volume, motor power, explosion-proof requirements and local electrical standards.

With more than 30 years of industry experience within our core technical team, we can also integrate mixing and reaction equipment with upstream material handling and downstream filtration, filling and packaging processes.
