PMK

Low Speed Mixing Kettle

Suitable for wet processing of liquid–liquid and solid–liquid systems.

The low speed mixing kettle also called tinting tank for paint production line. It' s for storage or mixing finished products for paint, ink, pesticide and other liquid chemicals, can equip with paddle type mixer or cup type.

Capacity1 – 10 m³
Stirring Power2.2 – 18.5 kW
Stirring Speed85 – 130 rpm
Request InformationTechnical Drawing

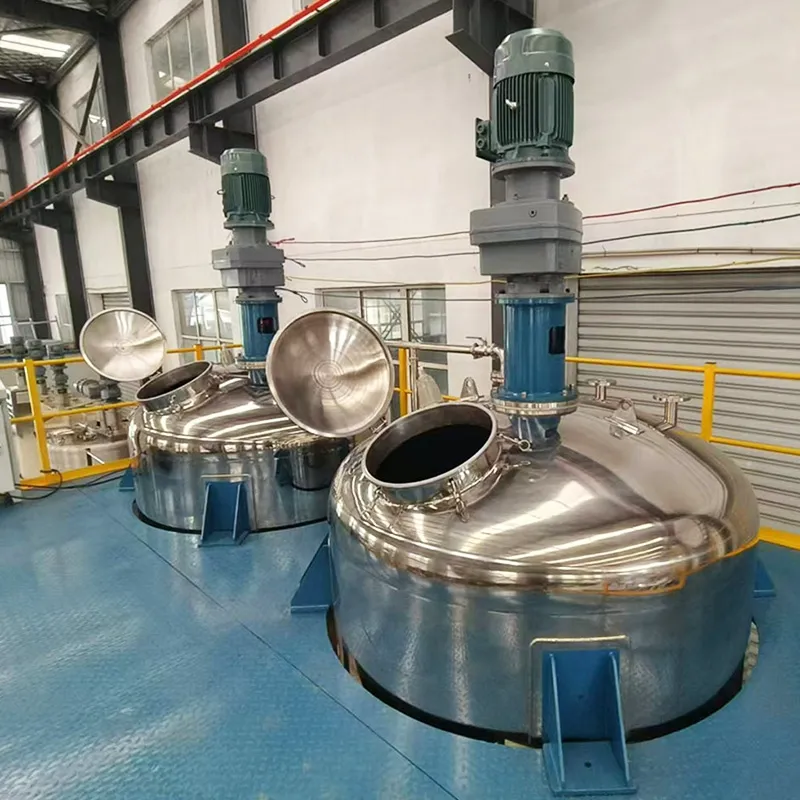

The PMK low speed mixing kettle is built for macroscopic mixing process, where gentle mixing and stable circulation are more important than high-speed dispersion. Using a low-speed, high-torque stirring system (typically 10–100 rpm), the kettle drives material flow throughout the vessel to achieve uniform mixing and consistent heat transfer. Depending on the application, it can be equipped with anchor, frame, paddle, or helical agitators to match different material behaviors. This makes it suitable for medium to high viscosity materials, shear-sensitive products, and processes that require controlled, stable mixing. It is widely used in industries such as chemicals, pharmaceuticals, food processing, coatings, and new energy materials.

Technical Specifications

Model Capacity (m³) Stirring Power (kW) Stirring Speed (rpm)
PMK-1 1 2.2 130
PMK-2 2 4 120
PMK-3 3 5.5 120
PMK-5 5 11 120
PMK-8 8 15 85
PMK-10 10 18.5 85

Machine Details

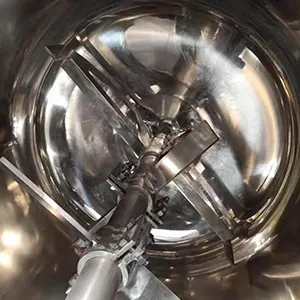

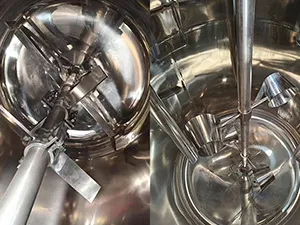

Customized Mixing Blades

Customized Mixing Blades
Different forms of mixing blades can be customized according to specific process requirements of customers, such as flat blades, cup shaped blades, etc.

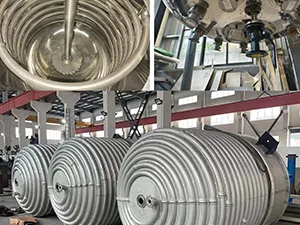

Customized temperature control system

Customized temperature control system
Heating and cooling options can be configured based on the process, including external coils, electric heating, or jacketed systems. This allows better temperature control during mixing and improves process stability.

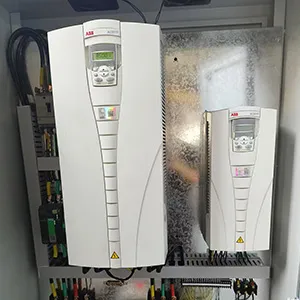

Accurate automation control

Accurate automation control

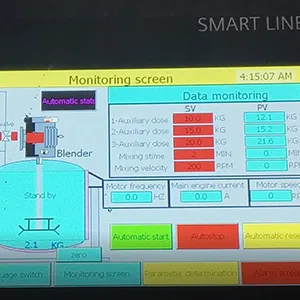

The PLC control system enables precise adjustment and real-time monitoring of key parameters such as mixing speed, temperature, vacuum level, and processing time, supporting consistent operation and reliable batch results.

Features

High torque mixing performance

The low-speed, high-torque design allows the agitator to move and fold medium to high viscosity materials effectively, ensuring consistent mixing throughout the vessel.

Gentle mixing for sensitive materials

The mixing process is driven by bulk circulation rather than high shear, making it suitable for shear-sensitive materials such as emulsions, polymers, and certain chemical formulations.

Flexible agitator configurations

A range of agitator types, including anchor, frame, propeller, ribbon, and turbine, can be selected to match different material characteristics and processing requirements.

Controlled temperature management

The kettle can be equipped with jacketed, half-pipe, or coil heating and cooling systems, allowing better control of material temperature during processing.

Durable construction for long-term use

The vessel is typically made from 304 or 316L stainless steel, providing good corrosion resistance and supporting long service life in industrial environments.

Why Polyc

Polyc designs and manufactures mixing kettles, mixing tanks and reactors for chemical production. These systems can be customized according to material properties, working volume, motor power, explosion-proof requirements and local electrical standards.

With more than 30 years of industry experience within our core technical team, we can also integrate mixing and reaction equipment with upstream material handling and downstream filtration, filling and packaging processes.
