Resin Reactor
Suitable for wet processing of liquid–liquid and solid–liquid systems.

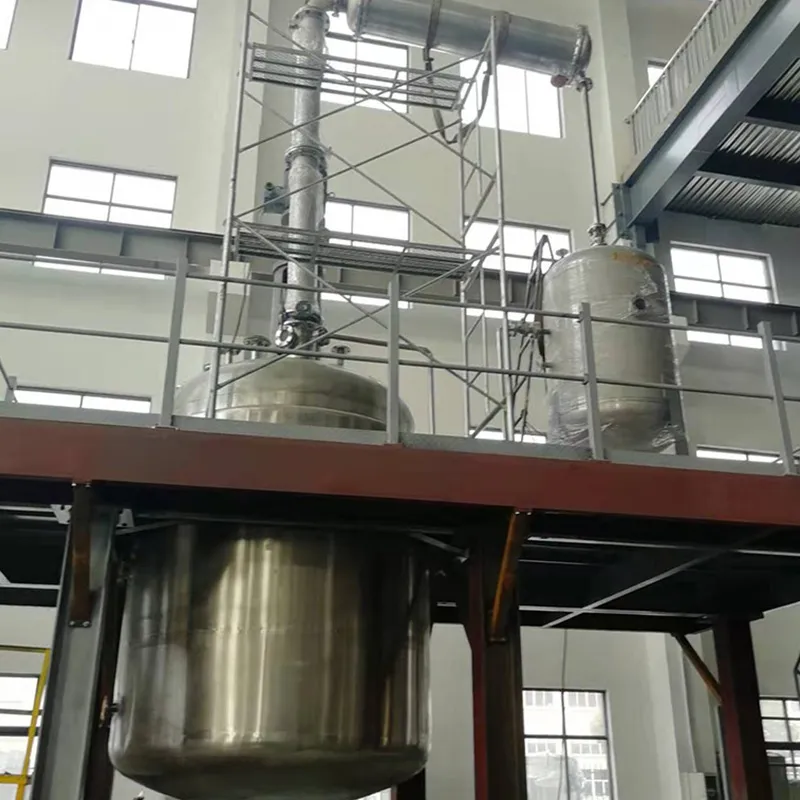

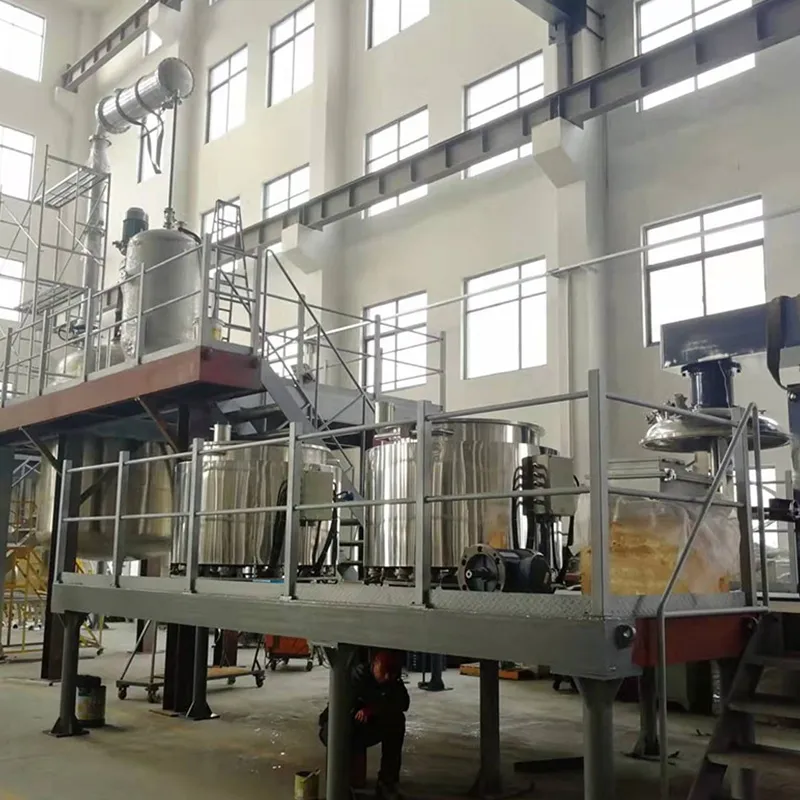

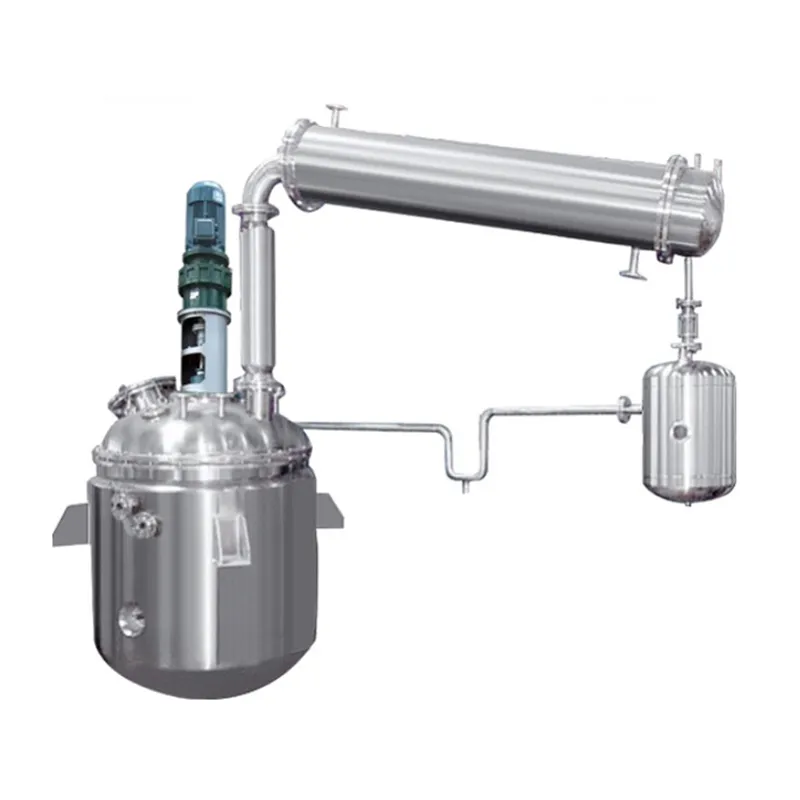

The Resin Reactor is used for the production of unsaturated polyester resin, phenolic resin, epoxy resin, ABS resin and paint key equipment. The complete equipment consists of reactor, vertical fractionating column, horizontal condenser, water injector, oil overflow tank, pipeline (dilution kettle), etc. The contact parts of the whole equipment and materials are made of stainless steel.
Resin production requires steady temperature control and reliable mixing throughout each reaction stage. The PRK resin reactor is designed to handle these conditions, supporting controlled synthesis from initial heating to final discharge within a single system. The reactor integrates key functions such as heating, cooling, vacuum operation, condensation reflux, and mixing. Equipped with anchor or frame-type agitators and supported by precise temperature control systems, it allows stable handling of processes such as polymerization, esterification, and condensation. This makes it suitable for producing a wide range of resins, including acrylic, alkyd, epoxy, polyester, and unsaturated polyester, supporting both pilot-scale and large-scale production.
Technical Specifications
| Nominal Capacity (L) | Actual Capacity (L) | Electrical Heating Power (kW*pcs) | Oil Amount in Jacket (L) | Inner Pot Size (φmm) | Outer Pot Size (φmm) | Expander Capacity (L) | Motor Power (kW) | Speed of Stirring (n/min) | Weight (kg) |
| 50 | 78 | 2*4 | 96 | 400 | 600 | 10 | 1.1 | 80 | 270 |
| 100 | 127 | 2*6 | 127 | 500 | 700 | 10 | 1.1 | 80 | 340 |
| 300 | 327 | 4*6 | 218 | 800 | 1000 | 20 | 2.2 | 80 | 700 |
| 500 | 509 | 4*9 | 269 | 900 | 1100 | 20 | 3 | 80 | 930 |
| 1000 | 1017 | 4*12 | 400 | 1200 | 1400 | 40 | 4 | 80 | 1610 |
| 2000 | 2154 | 4*15 | 850 | 1400 | 1600 | 40 | 5.5 | 80 | 2010 |
| 3000 | 3201 | 4*15 | 1015 | 1600 | 1750 | 40 | 7.5 | 80 | 2590 |
| 4000 | 4020 | 5*15 | 1226 | 1600 | 1750 | 40 | 11 | 80 | 3160 |
| 5000 | 5170 | 4*18 | 1400 | 1800 | 2000 | 40 | 15 | 80 | 4000 |
Machine Details
Features
Integrated reaction system

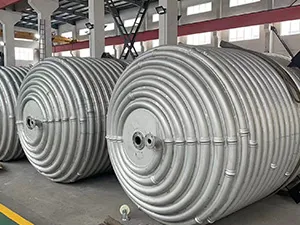

Controlled temperature management
Efficient condensation and reflux design

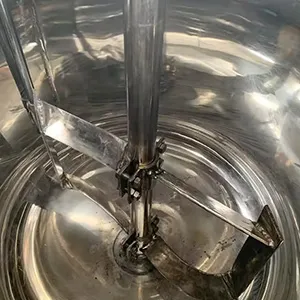

Adaptable mixing configurations
Flexible pressure operation
Corrosion-resistant construction
Why Polyc

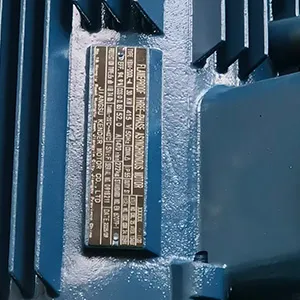

Polyc designs and manufactures mixing kettles, mixing tanks and reactors for chemical production. These systems can be customized according to material properties, working volume, motor power, explosion-proof requirements and local electrical standards.
With more than 30 years of industry experience within our core technical team, we can also integrate mixing and reaction equipment with upstream material handling and downstream filtration, filling and packaging processes.
