PM Butterfly Twin Shaft Mixer
Mixers and Dispersers

Machines for the Paint, Coating and Chemical Industry

PM

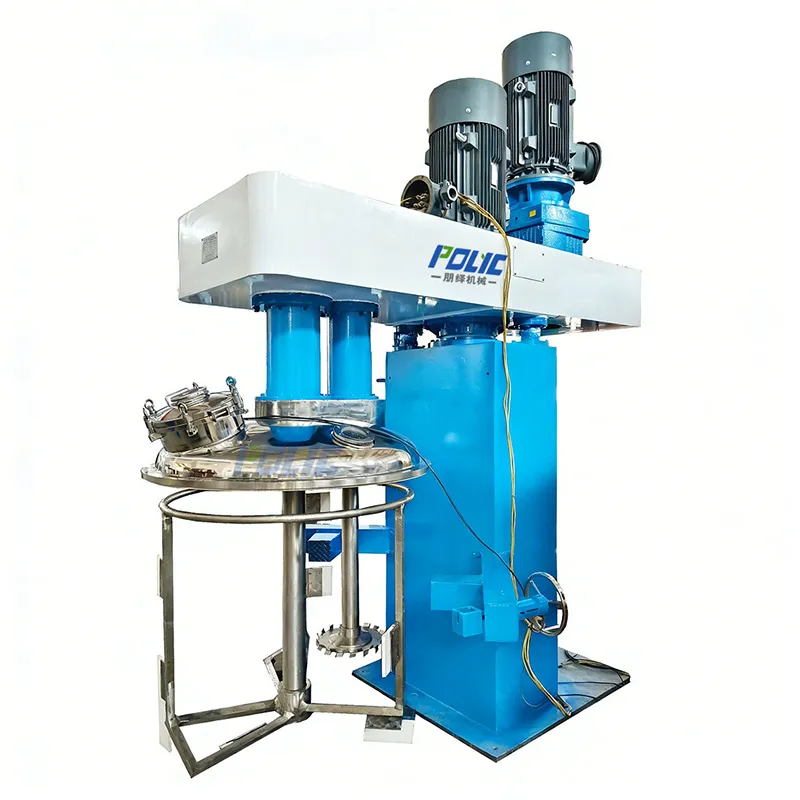

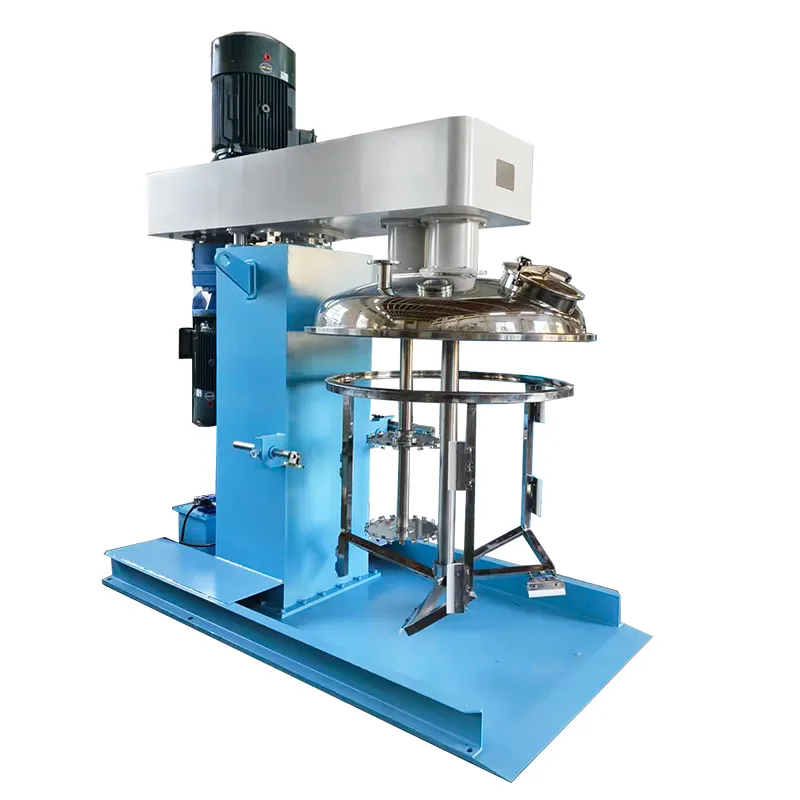

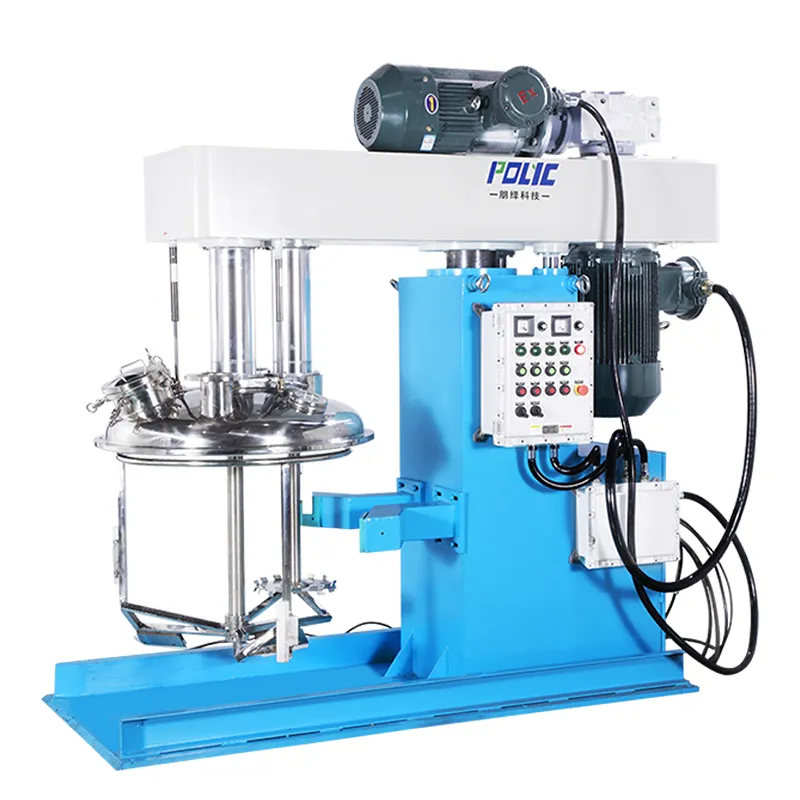

Butterfly Twin Shaft Mixer

Designed for dispersing and mixing of different high viscosity products like paste, offset ink, wall putty, car putty, adhesive

Suitable for wet mixing, pre-dispersion, and homogenization of medium- to high-viscosity liquids, powder-liquid formulations, and pastes, including paints, offset printing inks, putty, adhesives, silicone sealants, and battery slurries.

Tank Capacity150 – 900 L
High-Speed Motor Power7.5 – 55 kW
Low-Speed Motor Power4 – 37 kW
Lifting Stroke700 – 1100 mm
Request InformationDownload Brochure

Butterfly twin shaft mixers are designed for medium- to high-viscosity materials that need steady mixing without overly aggressive grinding. The mixing section has two shafts fitted with butterfly blades, usually arranged to move the material from different directions inside the tank. When the blades rotate, the material is pushed through axial and radial flow patterns, which helps thicker formulations circulate more evenly instead of staying around the wall or bottom. The broad material movement and controlled shear created by the butterfly blades help the batch move through pre-dispersion, blending, and homogenization more smoothly before the next production step.

Technical Specifications

Model PM150 PM500 PM600 PM900
Tank Capacity (L) 150 500 600 900
High-Speed Motor Power (kW) 7.5-11 18.5-22 22-37 30-55
Low-Speed Motor Power (kW) 4-5.5 7.5-15 11-30 11-37
High-Speed Dispersing Disc Diameter (mm) 200 250 280 330
Low-Speed Butterfly Blade Diameter (mm) 500 800 900 1100
High-Speed Shaft Speed (rpm) 0-1450 0-1450 0-1450 0-1450
Low-Speed Shaft Speed (rpm) 0-60 0-90 0-120 0-120
Lifting Stroke (mm) 700 950 1100 1100

Technical Drawings

Technical Drawings

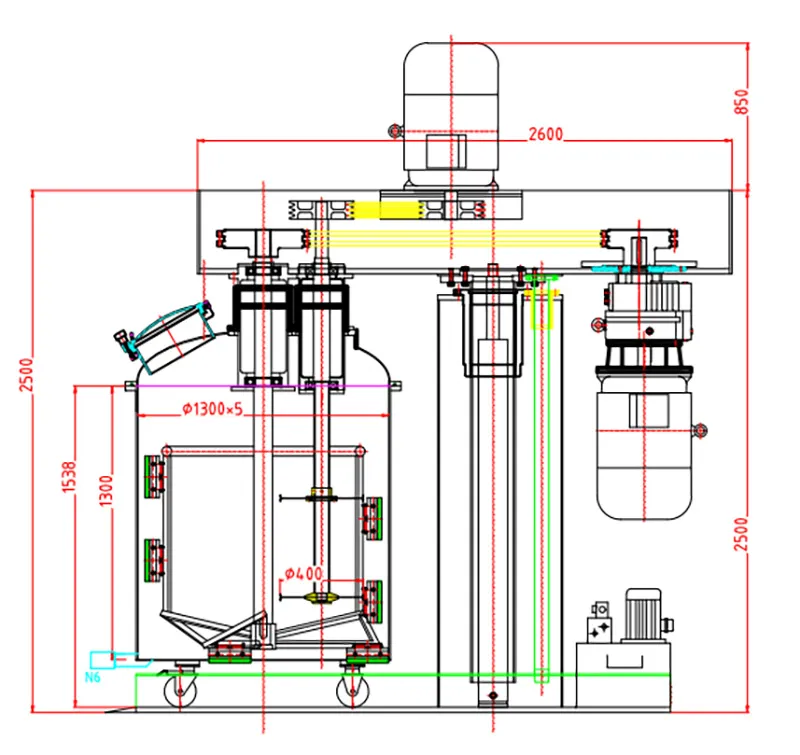

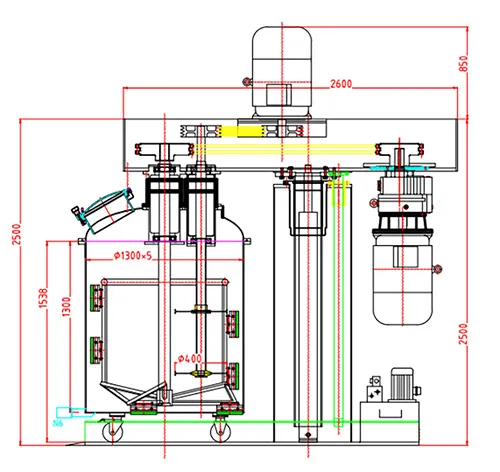

We can design technical drawings with specified configurations according to customer needs, and can produce drawings within 3 days. After the customer places an order, we can also create detailed disassembly and assembly diagrams, factory layout diagrams, production line flowcharts, etc. for the corresponding machines if they need them.

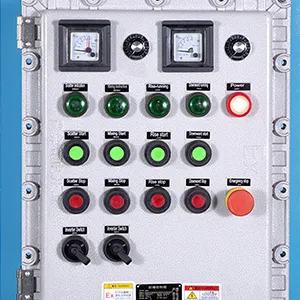

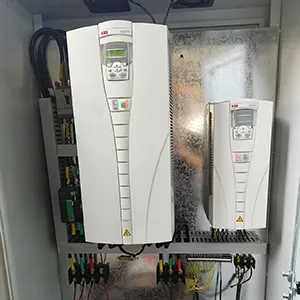

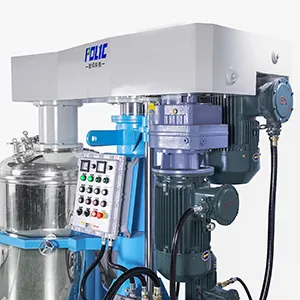

Machine Details

Dispersing Disc Options

Dispersing Disc Options

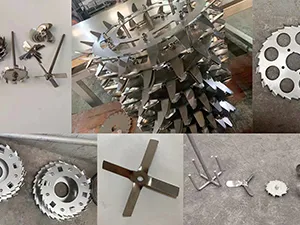

The dispersing discs can be made from wear-resistant stainless steel and designed with serrated edges to create the shear needed for dispersion. Their size and structure can be selected according to mixer power, material viscosity, and process requirements, so cleaning and replacement are easier during daily production.

Customized Butterfly Blade Designs

Customized Butterfly Blade Designs

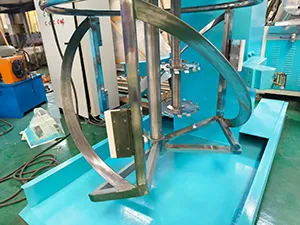

Butterfly blades can be customized in different forms, including helical blade designs, to match the customer’s material and production process. Different blade shapes help adjust how the material moves inside the tank, improving mixing coverage and overall mixing performance.

Optional Process Systems and Contact Materials

Optional Process Systems and Contact Materials
Vacuum, heating, and cooling systems can be added when the production process requires more control. For materials with higher hygiene, corrosion-resistance, or cleanliness requirements, the parts in contact with the material can also be made from food-grade stainless steel such as SS316L.

Features

Butterfly-shaped blades create both axial and radial movement inside the tank, helping the material circulate in different directions and reach a more uniform mix in a shorter processing time.
The butterfly blade movement helps the mixer be able to handle materials with a wide viscosity range, from low-viscosity liquids to medium and high-viscosity slurries, while keeping thicker materials moving more evenly through the tank.
Vacuum, heating, and cooling systems can be added according to the production process and material requirements. For applications with higher hygiene or corrosion-resistance needs, material contact parts can also be made from food-grade stainless steel such as SS316L.
The blade structure is relatively simple, making disassembly, cleaning, and maintenance more convenient for batch changeover and processes that require better hygiene control.
Material flow created by the butterfly blades supports more efficient mixing, reducing unnecessary energy use while maintaining the required mixing effect.

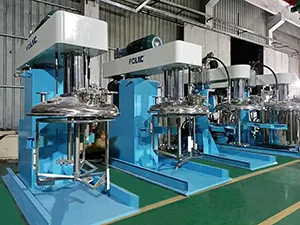

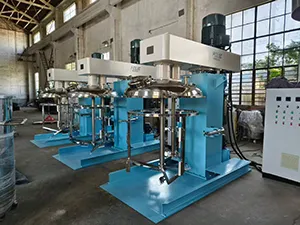

Why Polyc

Polyc manufactures mixing and dispersion equipment for paints, coatings, inks, adhesives, sealants and other chemical formulations. Equipment configurations can be selected according to material properties, processing capacity and mixing requirements.

Our engineering team supports equipment selection and configuration, including motor power, explosion-proof options and voltage requirements for different markets. Mixing and dispersion equipment can also be integrated with other process machinery into production systems.
