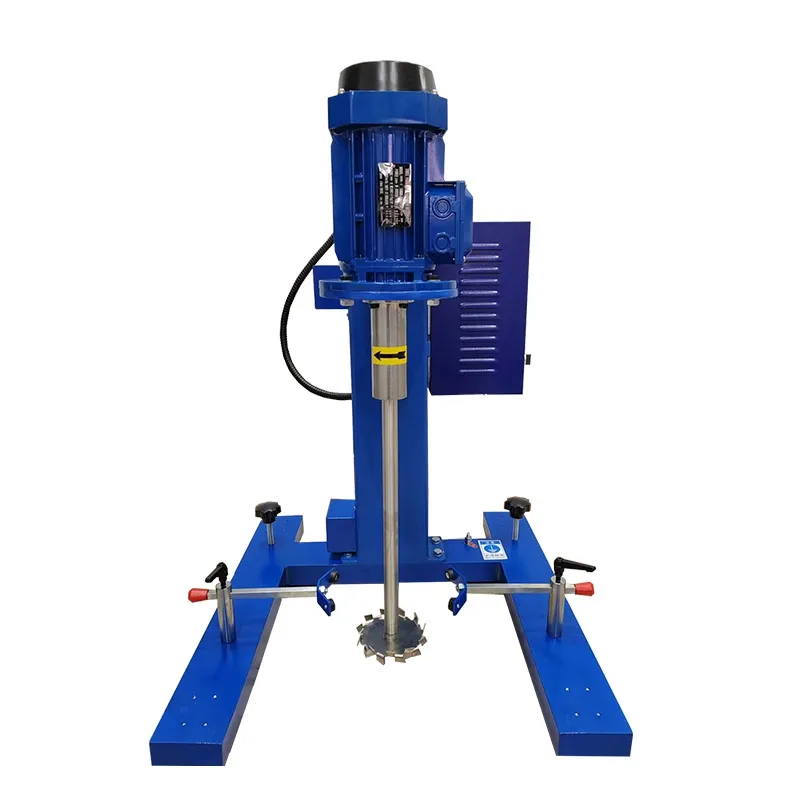

BPF-H Laboratory High Speed Dispersing Machine
Laboratory Grinding, Dispersion & Mixing Equipment

Laboratory-scale machines for formulation development, material testing and small-batch processing.

BPF-H

Laboratory High Speed Dispersing Machine

Suitable for wet processing of liquid–liquid and solid–liquid systems.

BPF-H Lab Dispersing Machine is a lab disperser which can handle 5-50L liters. The BPF-H Lab Dispersing Machine can provide right data for mass production, also used in small-lot production.

Motor Power1.1 – 2.2 kW
Disc diameter100/120/150⌀
Lifting height50 - 600 mm
Handling capacity5 - 80 L
Request InformationDownload Brochure

When developing a new formulation, consistency at the laboratory stage determines how smoothly it scales to production. The BPF-H laboratory high speed dispersing machine is designed to support this step, allowing controlled dispersion and mixing under adjustable conditions. With variable frequency speed control and a flexible lifting system, the dispersing machine makes it easier to adjust parameters such as speed, immersion depth, and mixing intensity during testing. It is suitable for laboratory trials as well as small-batch production from 5 to 80 liters, providing practical data for process validation in industries such as coatings, inks, pigments, and chemicals. Its compact structure and mobility also make it convenient for use in different lab environments.

Technical Specifications

Motor Power (kW) Speed (rpm) Disc diameter (⌀) Lifting height (mm) Overall size (mm) Handling capacity (L)
1.1 0-1500 100、120、150 50-600 720×600×132 5-80
2.2 0-3000 720×650×1450

Machine Details

  • High speed dispersing discHigh speed dispersing disc

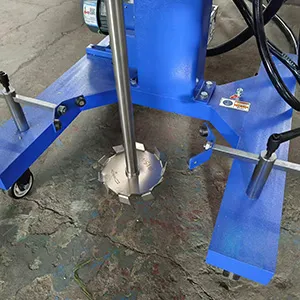

  • Customized clampCustomized clamp

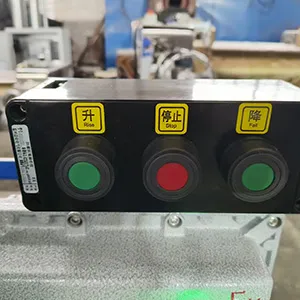

  • Customized electric liftingCustomized electric lifting

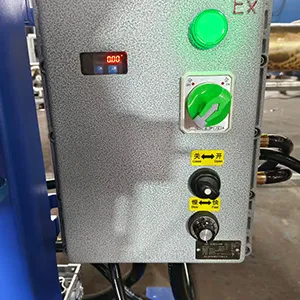

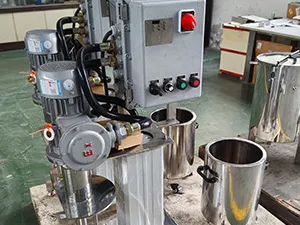

  • Explosion-proof control panelExplosion-proof control panel

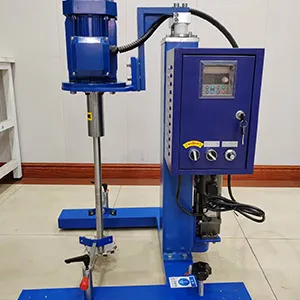

  • Customizable lifting configurationCustomizable lifting configuration

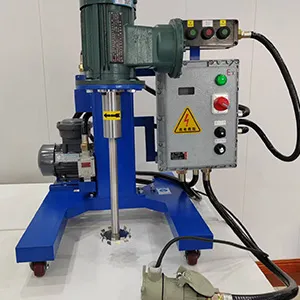

  • Explosion-proof option for safer operationExplosion-proof option for safer operation

Features

Variable frequency speed control

Equipped with a frequency inverter to provide stepless speed adjustment within ranges such as 0–1500 rpm or 0–3000 rpm. Speed can be monitored directly, allowing more precise control during testing.

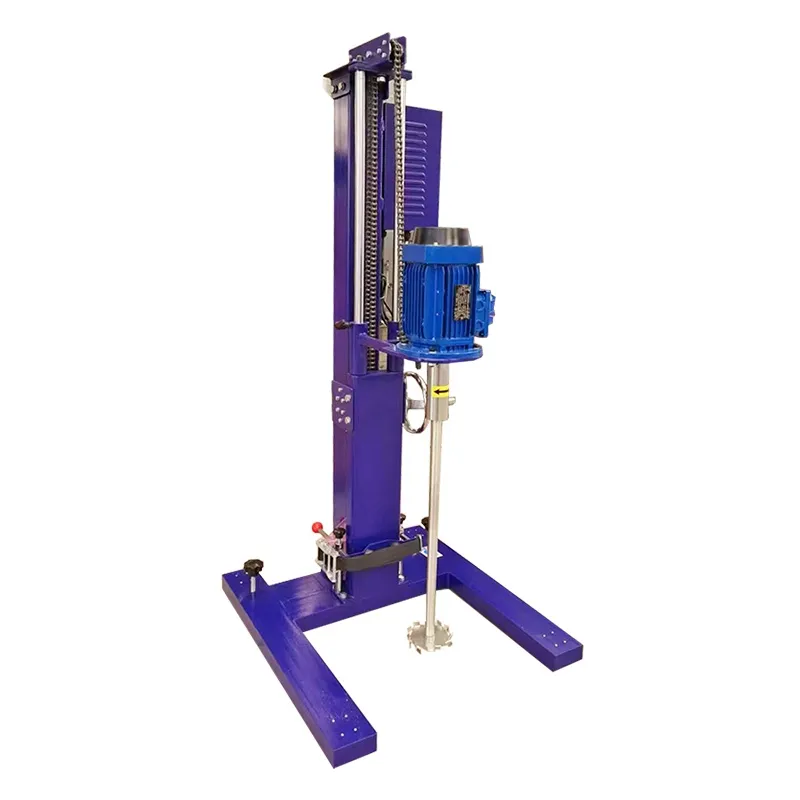

Adjustable lifting system

The dual-column lifting structure supports manual or electric adjustment, with a lifting range of 500–600 mm. This allows flexible positioning of the dispersing disc based on different container sizes and process needs.

Flexible batch capacity

Designed to handle 5–80 liters of material, covering both laboratory experiments and small-scale production requirements.

Multiple motor configurations

Motor options including 1.1 kW, 1.5 kW, and 2.2 kW can be selected to match different material viscosities and dispersion requirements.

Interchangeable dispersing discs

Available with multiple disc sizes (Φ100 mm, Φ120 mm, Φ150 mm), allowing adjustment based on material characteristics and processing goals.

Optional explosion-proof configuration

Standard and fully explosion-proof versions are available to meet safety requirements when handling volatile or flammable materials.

Why Polyc

Polyc provides laboratory-scale grinding, dispersion, mixing and emulsifying equipment for formulation development, material testing and small-batch processing.

Our laboratory equipment helps customers evaluate process parameters before moving to larger production equipment. With extensive experience in wet grinding, dispersion and mixing, Polyc can support equipment selection from laboratory development through industrial production.
